Greetings fellow adventurers,
Whether you need an emergency d20 or a quick little extra to put in a celebratory card for a fellow DnD’er, the “D20 kitcard” has you covered.
This version V1 is a 34mm high d20 that features a layout of which the opposite sides sum to 21.
Assembly Instructions (no glue required):
The joints of the pieces feature a slight dovetail design and require a bit of pressure to push into place. Once assembled it is not recommended to disassemble again.

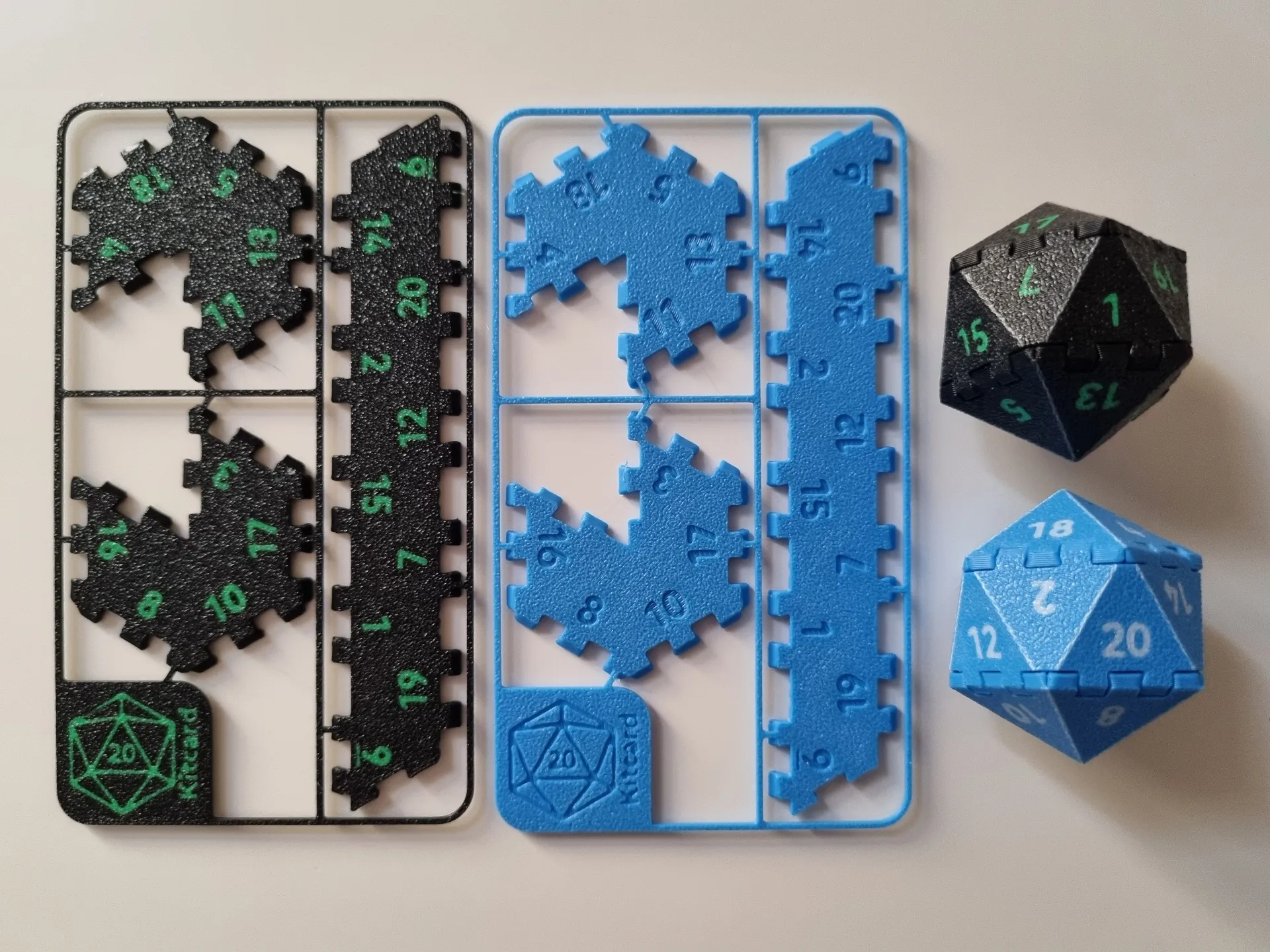

1. Carefully remove each piece from the frame.
2. Gently bend the faces of the top piece (4-11) inward, align the 4-face above the 11-face and push down on the 4-face to connect.
3. Gently bend the faces of the bottom piece (3-16) inward, align the 3- face above the 16-face and push down on the 3- face to connect.
4. Gently bend the faces of the middle piece inward, but don’t connect the ends yet.
5. Connect the first 2 faces of the bottom piece and the middle piece with the 16-face aligned to the 6-face & the 8-face aligned to the 20-face.
6. Connect the top piece and the middle piece with the 14-face aligned to the 4-face.
5. Go around and align the subsequent faces. Don’t worry if they don’t connect straight away, you’ll be able to push down and push everything into place at the end. You just have to make sure to align the joints so they can snap into place.

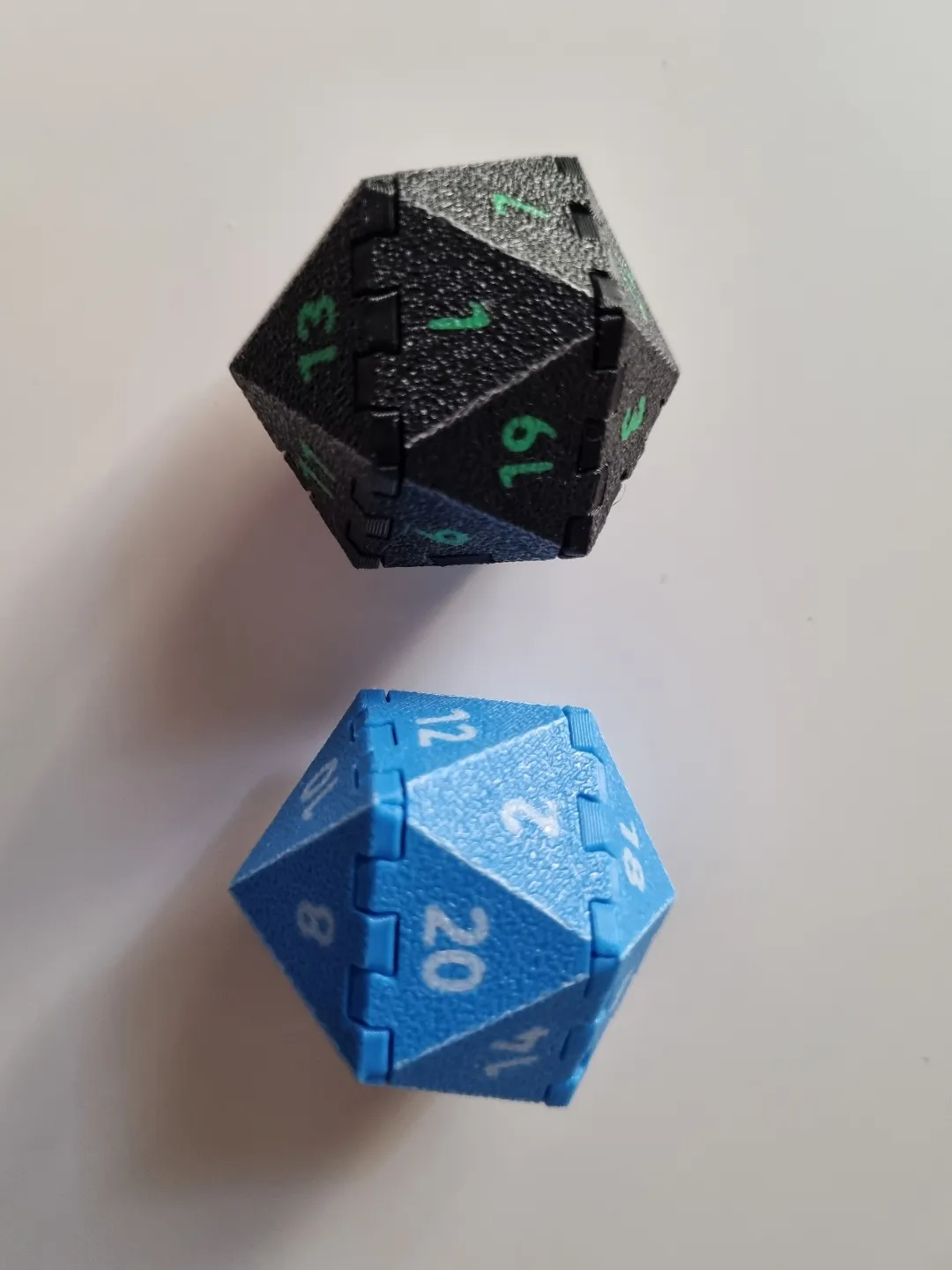

And there you have your new D20!
Options:
In the print profiles you will find the following options:
duo color with frame
single color with frame
duo color no frame
single color no frame
Materials:
All these were printed in pla.
Credits:
Tjoene
Download 3D models
| File | File size |
|---|---|
D20+Kitcard+V1
|
3 MB |
