8 Inch Tablet Stand

8 Inch Tablet Stand 3D model

3D 8 Inch Tablet Stand model

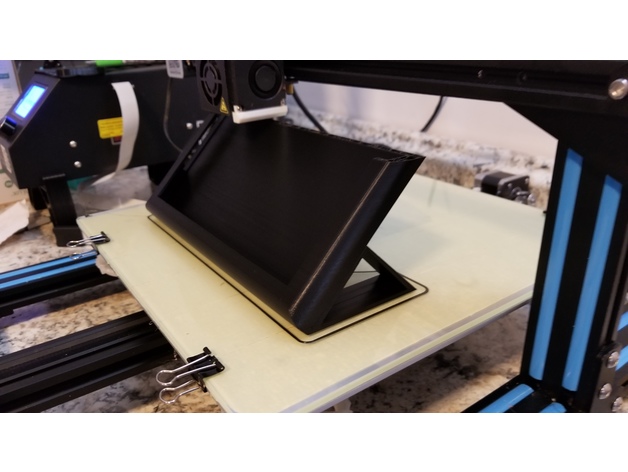

I have a few extra old 8 inch tablets that I wanted to re-purpose. I happen to have two 3D printers and two little laser engravers. So I figured I’d connect the tablets directly to them as touch screens to control them. So I created a 8 inch tablet holder that has opening at the top and side for access to the ports. If you happen to have a tablet with holes on the right you can bring this design into tinkercad and use the hole tool to open up the right side. I also purchased the OTG adapter that allows me to charge the tablet at the same time I can connect usb to computer/mouse/keyboard etc.

The OTG adapter is here –> https://www.walmart.com/ip/4-Port-Micro-USB-Host-OTG-Hub-Power-Adapter-Charging-Cable-for-Android-Phone-Tablet-PC/971642870

In the next few days I’m going to 3D print a holder for the OTG adapter and incorporate it into this tablet design. I’ll update this post with the OTG adapter holder link as soon as its completed.

Print Settings

Printer Brand:

Creality

Printer:

CR-10

Rafts:

No

Supports:

No

Resolution:

.1

Infill:

15

Notes:

I used Hatchbox PLA at a temp of 235 and a bed of 68

How I Designed This

I used Tinkercad to do the design and I inclined the tablet at a 45 degree angle

Credits:

dehart007

Rate this 3D model

Download 3D models

File File size
zip 8_Inch_Tablet_Stand 9 KB
