Ethernet Cable Runners – Screw Mount Type

Ethernet Cable Runners have proven to be extremely popular as a simple solution to keep your Ethernet cables neat, under control and easy to access, insert and remove.

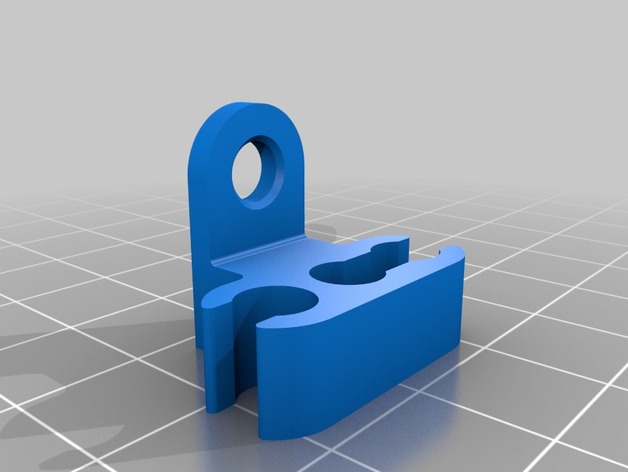

The stl files provided here include a screw mount to make them attachable to walls, shelves, partitions and other internal structures.

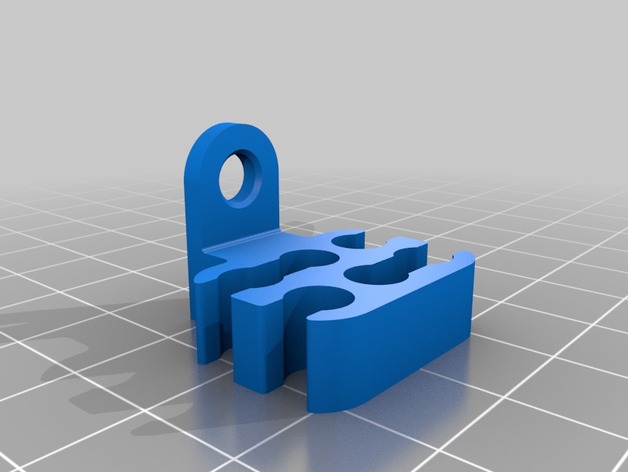

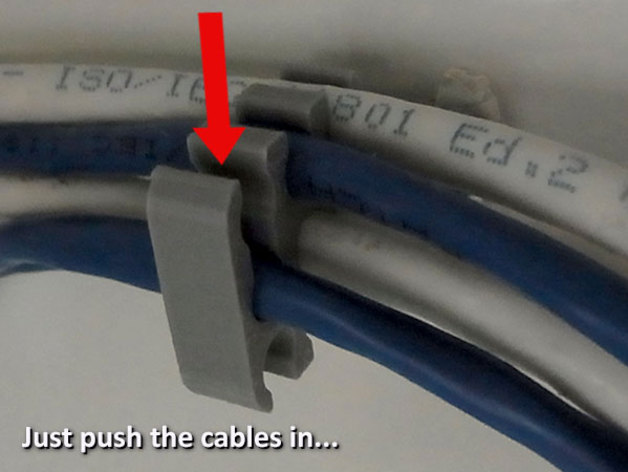

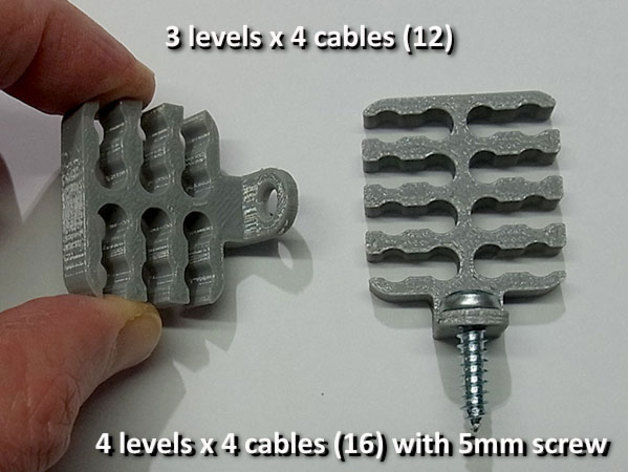

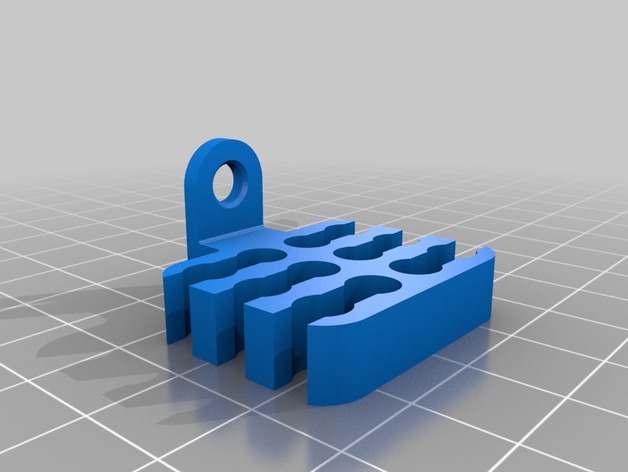

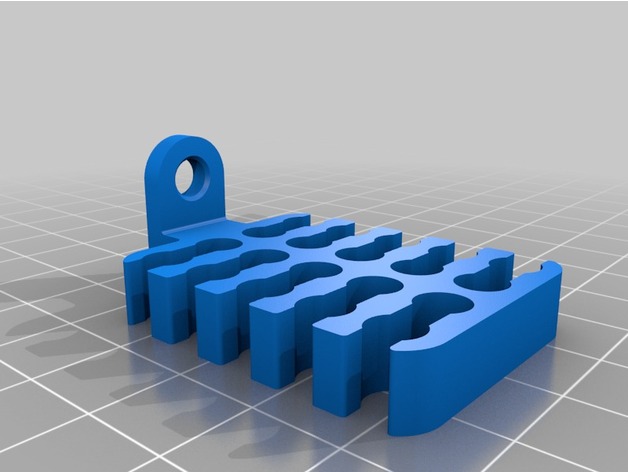

The screw fixing range accommodates from 2 to 16 cables. Each slot only ever accepts up to 2 cables. This ensures you can easily access and remove inner cables…the maximum that can be outside it is one.

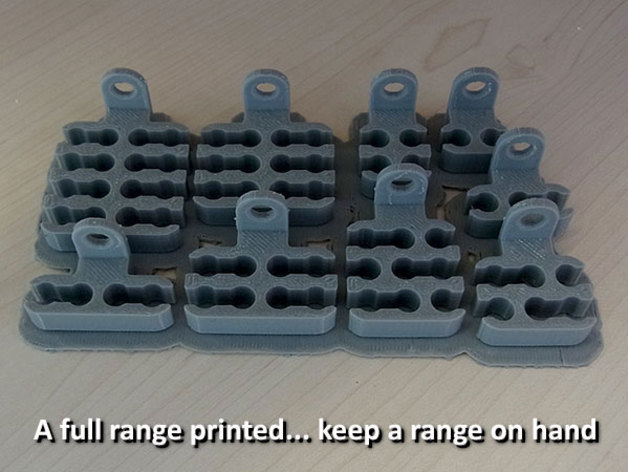

The Ethernet Cable Runners are all small blocks that print quickly so are an easy and cost effective solution to an everyday issue in offices, buildings and at home. Print lots and a range so you’ve always got the right one to fulfil your need at the time…. Tidy up your cables today!

And, if you find the cables you’re using vary from common size Ethernet cables, just uniformly scale them to suit.

Please refer to the images and print instructions for further information.

Note: If you like these check out the rest of my practical and fun designs.

Print Settings

Printer Brand:

MakerBot

Printer:

MakerBot Replicator 2

Rafts:

Yes

Supports:

No

Resolution:

Standard / 0.20mm

Infill:

3 shells / 50% or more infill recommended to ensure they are strong… particularly the versions holding large numbers of cables.

Notes:

To make sure these work well print them strong by using 3 shells and 50% infill. They work great in PLA. They should also print well in ABS. No support required. Raft is your choice.

If you find the cables you’re using vary from common size Ethernet cables, just uniformly scale them to suit.

Credits:

muzz64
