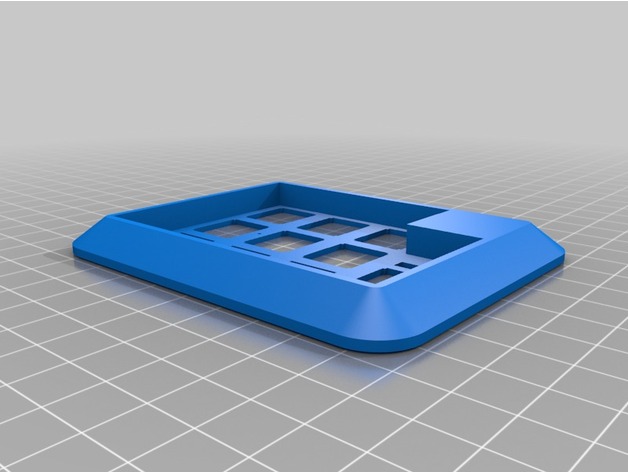

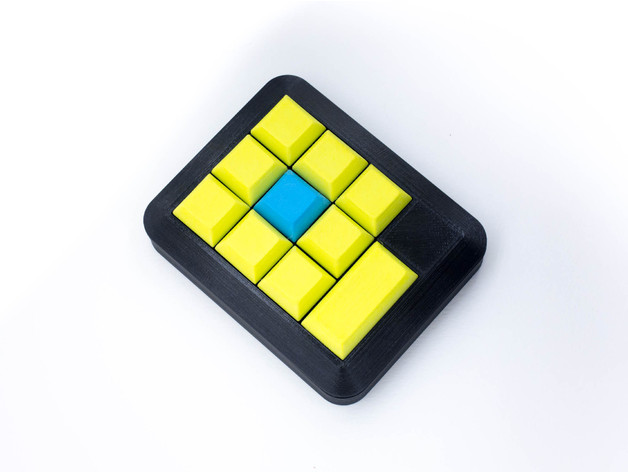

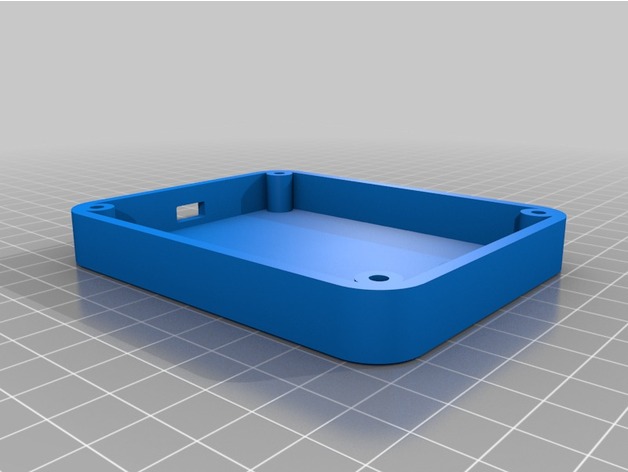

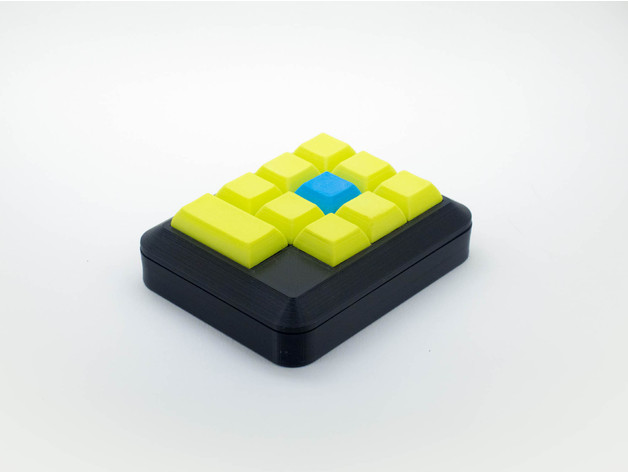

A mini 10 keys keyboard.
Parts :
10 key switch. ( Cherry MX or compatible , gateron… )
1 Teensy 2
10 keycaps ( I printed them ,design will be uploaded soon )
4 M4 threaded Inserts
4 M4x12 screw
Software :
You can use https://github.com/GManzato/qmk_firmware/tree/master/keyboards/mini10k
it’s a fork of the qmk firmware. For now I’ve just implemented a basic numkey keyboard
Pinout for the Teensy :
Row : F5, F6, F7, B6
cols : F0, F1, F4
Print Settings
Printer Brand:
Ultimaker
Printer:
Ultimaker 2
Rafts:
No
Supports:
No
Resolution:
0.1mm
Infill:
35
Notes:
I used ColorFabb PLA Black. PLA is quite easy for this project and enough stiff. ABS will be a bit more difficult since you need precise dimensions
Post-Printing
Just add the threaded instert with a soldering iron.
Credits:
gmanzato
