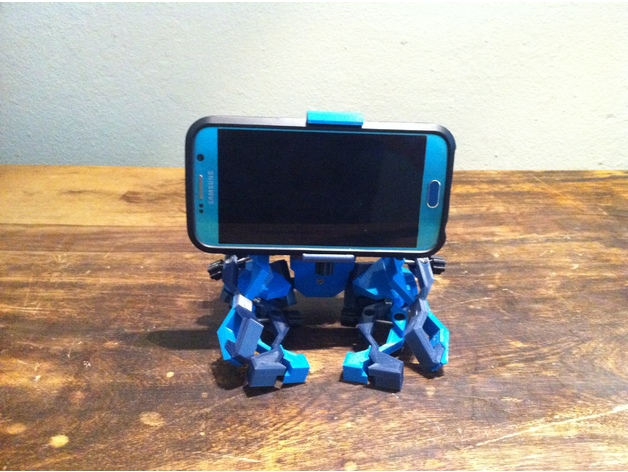

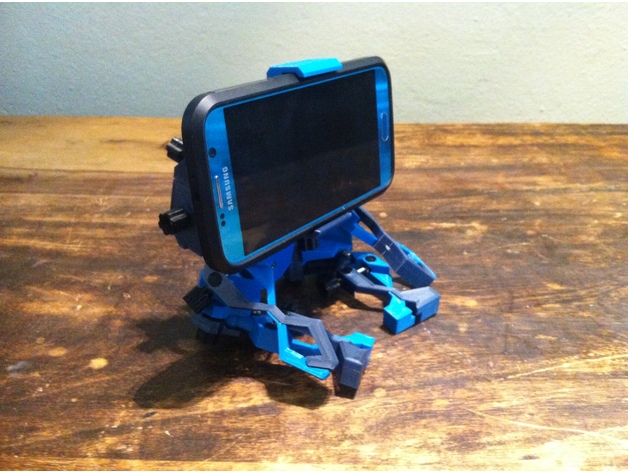

Phone Head is an universal phone holder in the form of a robot body.
His joints can be fastened in various positions. This way the phone holder can be made fit to hold on anything :-). Also he can sit as a human or hang on to something as a monkey :-). His hands and feet can be opened and closed for gripping stuff. On his back he has an bracket so you can hang him on the wall on a nail or something 🙂
“pin 1.stl” & “pin 2.stl” are printed in 0.1mm resolution and very slow with a lot of cooling in PLA. The other parts are printed in PET-G, 0.2mm resolution.
To assemble pin1 & pin2 please see picture.
parts list:
-9X M3x30mm bolt (although I used some 40mm instead because that was what I head)
-6X M3x20mm
-4X M3x15mm (but I just put in 10mm ones. The bolts made their own treats 🙂 )
-18X M3 nut
-6X M3 washer (optional)
-1X M4 treated rod 96mm. (Length depend on phone dimensions)
-2X M4 nut
Credits:
JobSmolders
