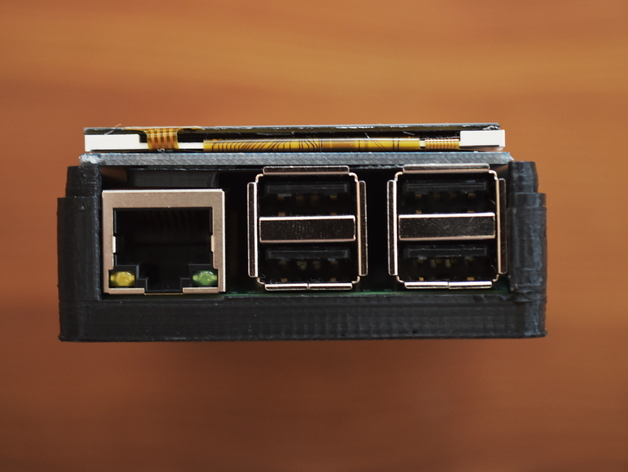

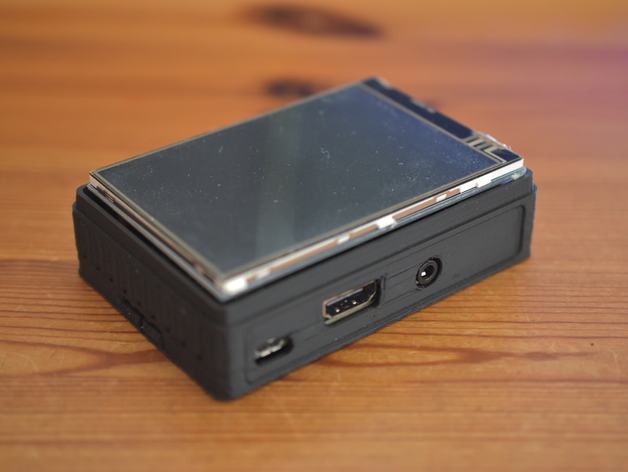

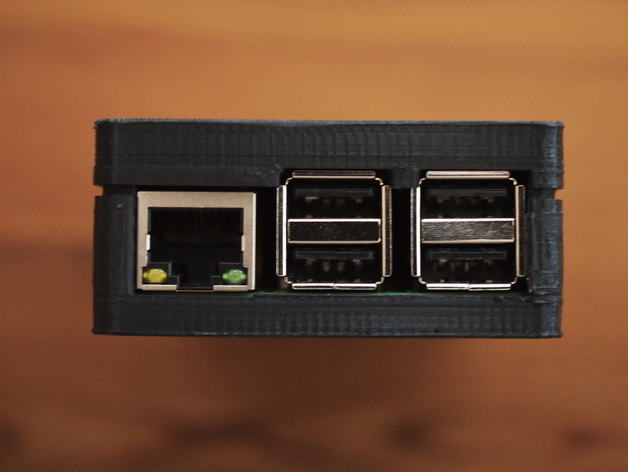

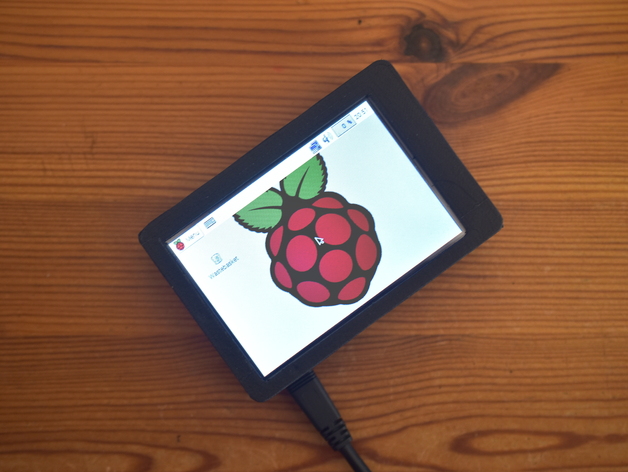

A simple display case for the Raspberry Pi 2 & 3 Model B. I used a 3.5inch touchscreen LCD, which is purchased from ebay. Link and guide is listed below.

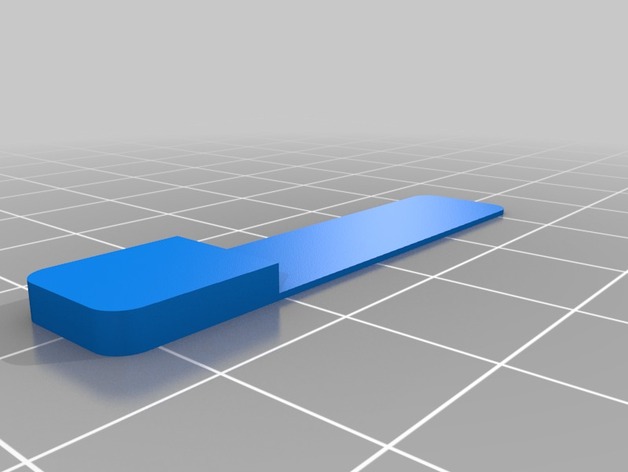

The micro SD card is accessible from outside. A special feature is, that it is held in place, even when the spring loaded mechanism of the sd slot fails (which happened here).
The raspi is entirely passive cooled. I have not used a heat sink or a fan.

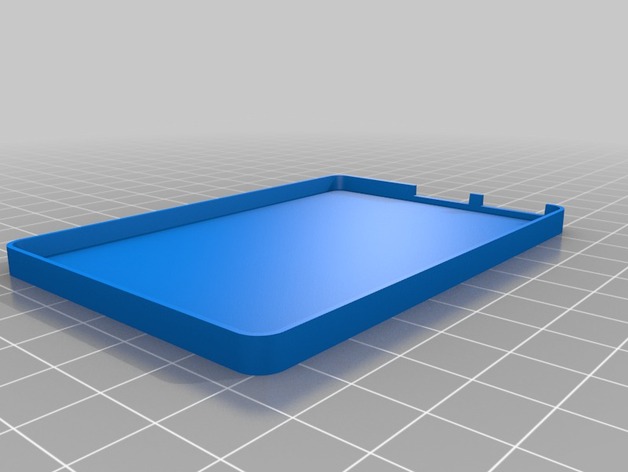

Do not print assembly.stl. I have three different top parts. I only used and printed that width the display. I used some weak glue to bind the parts together.
User-specified models:
raspiBplusCase_top_differentCutout.stl
raspiBplusCase_top_extraTall.stl
(I used the raspbian image)
Credits:
ftobler
Download 3D models
| File | File size |
|---|---|
Raspberry_Pi_Display_Case
|
3 MB |
