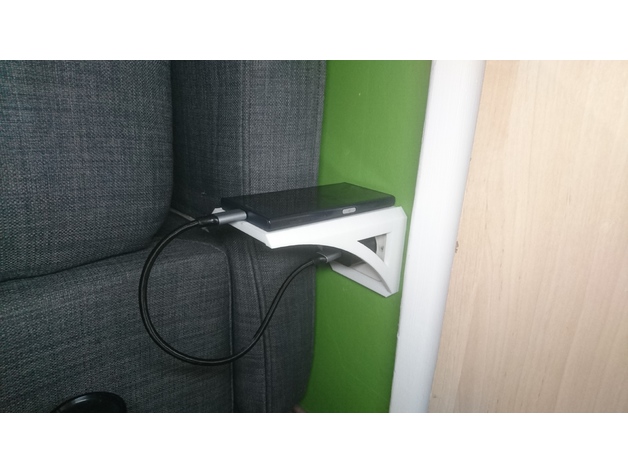

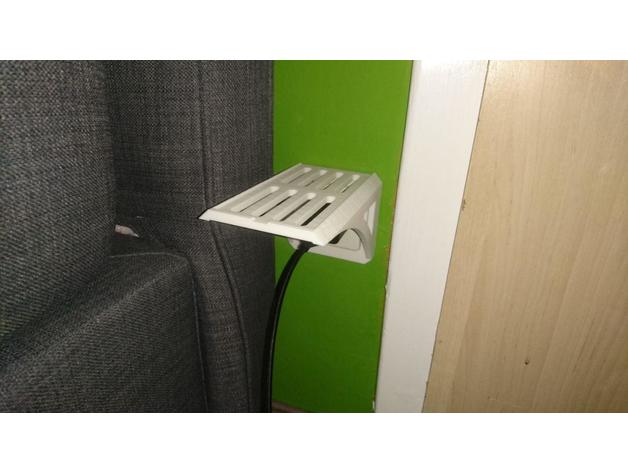

My girlfriend needed a place where she can charge her phone overnight, because there wasn’t enough space to fit a nightstand between the bed and the door. This made me design and print this smartphone holder that replaces the frame of a power outlet.
The inner width of the frame is 60mm.
It was designed to fit a Sony Xperia X Compact or any other phone with a size of 129mm x 65mm or less.
Print Settings
Printer Brand:
Wanhao
Printer:
Wanhao Duplicator i3 Plus
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
30
Notes:

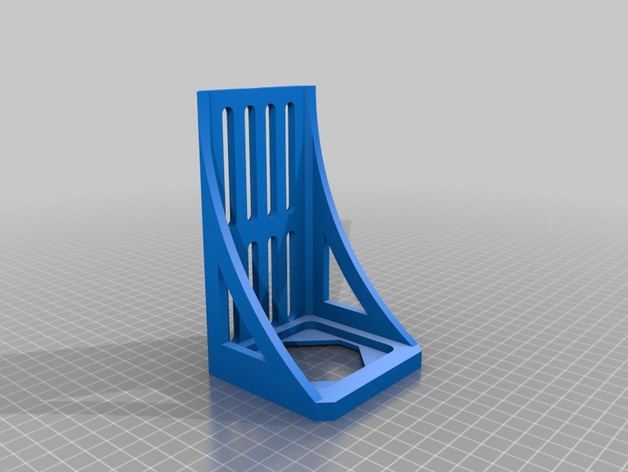

I’ve included two .stl files:
A file that prints without supports (Schuko_Smartphone_Holder_v#.stl)
and one that needs supports (Schuko_Smartphone_Holder_with_Spacer_v#.stl)
I experienced that the one with the spacer is more rigid because it touches the wall on the outside of the frame.
Post-Printing
Turn off the power for that outlet when installing!
Only install when you know what you are doing!
How I Designed This
I designed it using Autodesk Fusion 360.
Credits:
paulbernhardb
