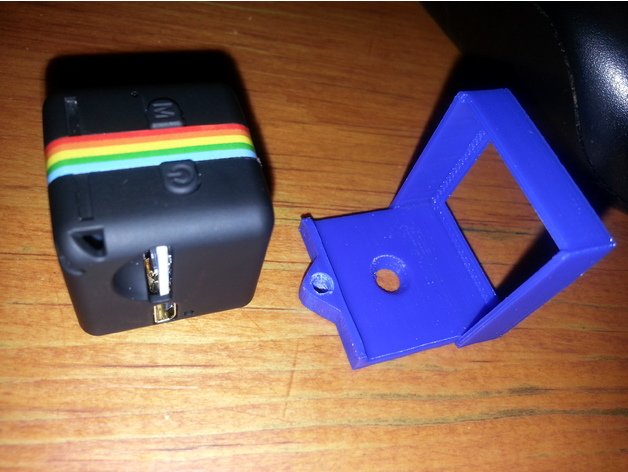

This is a SQ11 Mini Camera Holder for mounting the camera on a RC Airplane or whatever you want to bolt it to. It uses a #6-32 Machine or #6 Wood, Flat Head Screw to Attach it to a Tail Clip or anything you need to fasten it to. A #6-32 SHCS can be used at the back to lock in the camera. The camera can be mounted forward or backward in the holder. Tail Clip will hold a #6-32 nut (Firmly Now).
Print Settings
Printer Brand:
Anet
Printer:
A6
Rafts:
No
Supports:
No
Resolution:
0.1mm x 0.4mm
Infill:
20% but could be more.
Filament: iPRINT 3D, HATCHBOX, Tianse, etc. PLA, PVC, PETG Blue or whatever works
Notes:
For most prints I used Blue PLA with an extruder temp of 220ºC, bed temp at 45ºC, fan at 32% after the bottom layers are printed.
Credits:
John8
Download 3D models
| File | File size |
|---|---|
SQ11_MINI_CAM_HOLDER
|
911 KB |
