For A1 Mini, I’m just printing a test of a smaller case, to fit the A1 mini bed. Will post a profile soon.
Also preparing a profile without the nuclear sign, a blank top case.

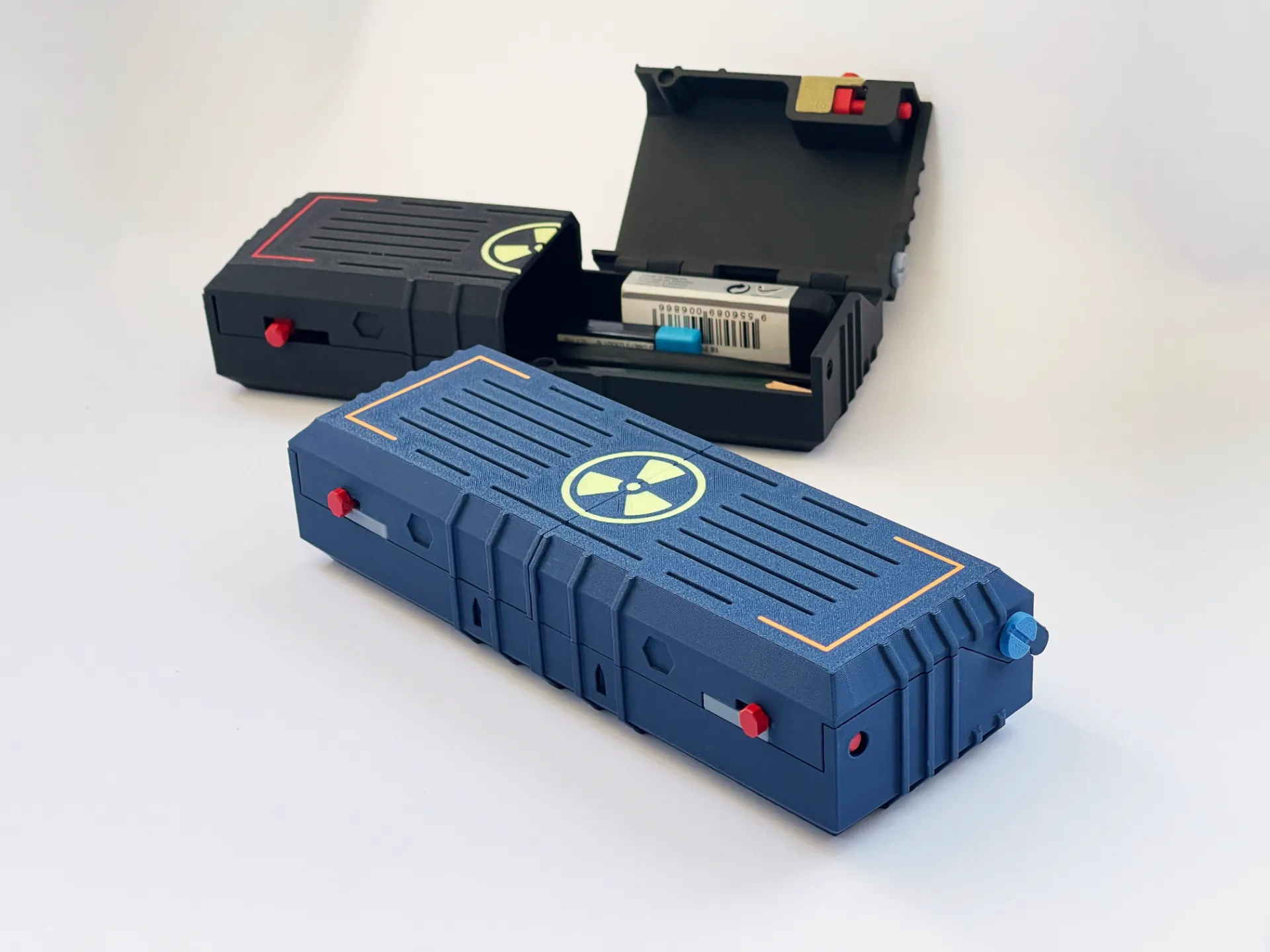

This storage case can be used as a pencil case or for anything else you like.
Inside space size: 174.8mm x 59mm x 36mm (LxWxh)
Strong build with sturdy print in place hinge. No hardware needed for the hinge.

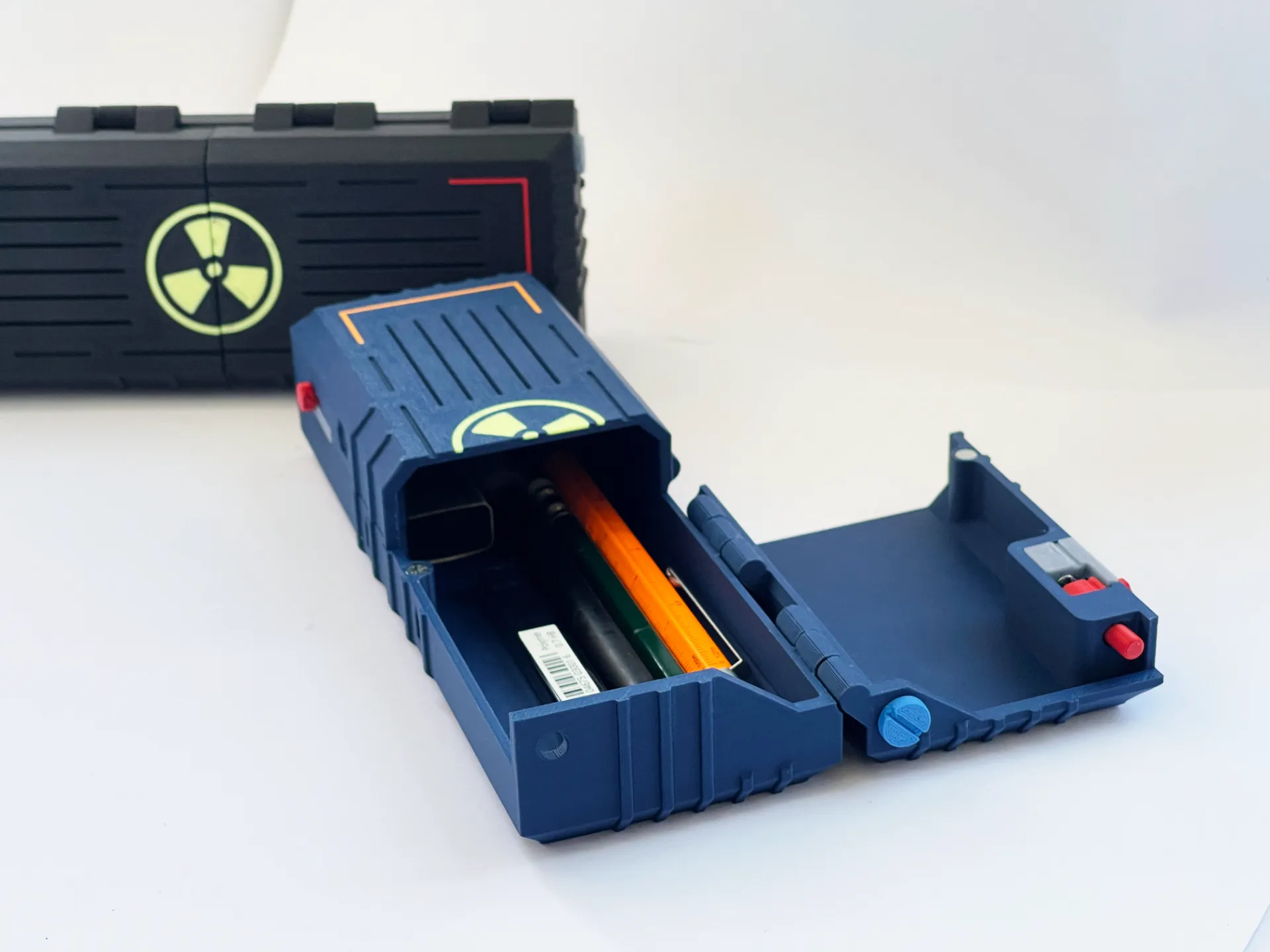

The case has a two part lid and each one can be opened separately.

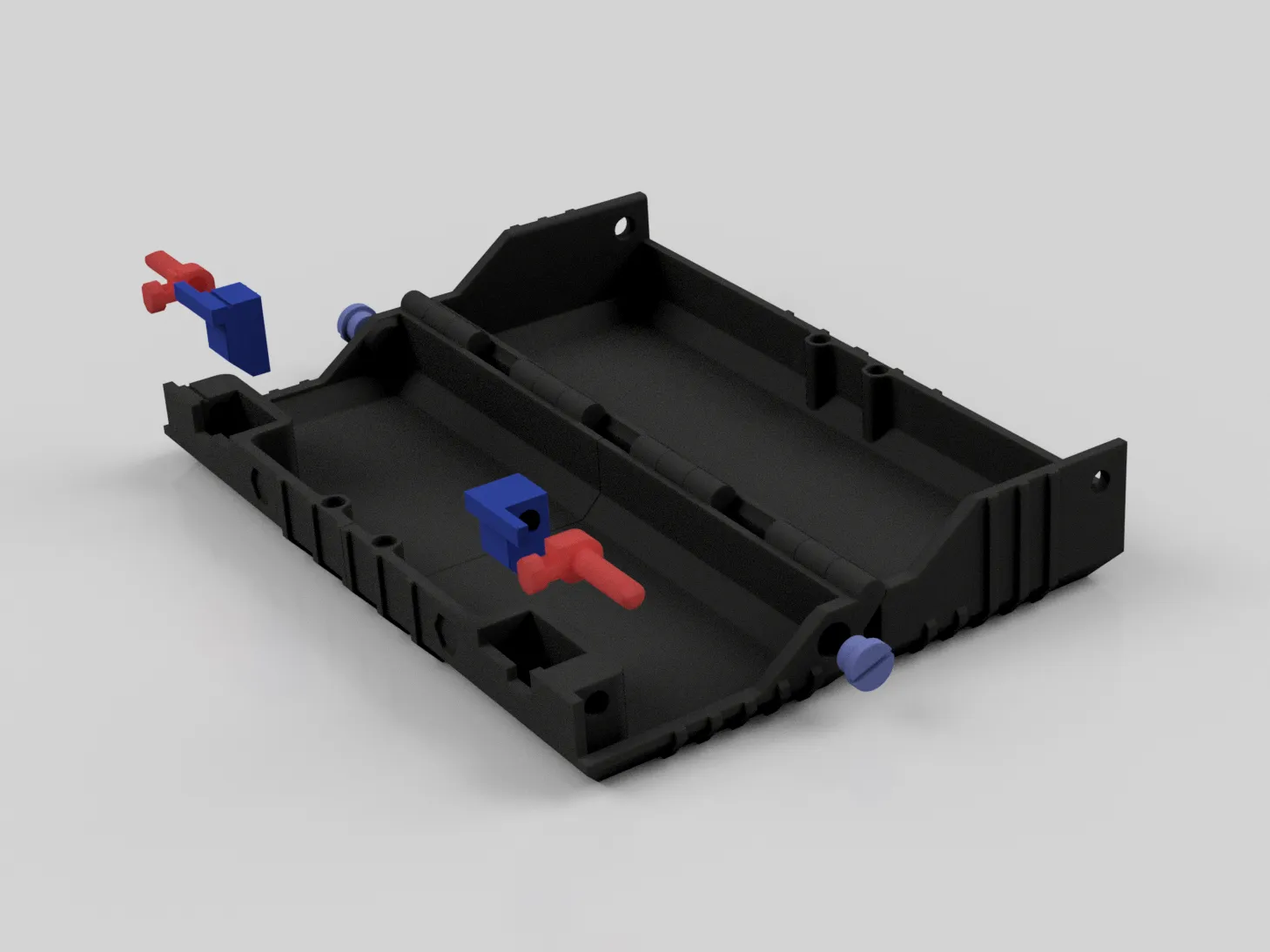

Magnetic lock mechanism on each lid. No springs needed, only magnets. Please check the gif animation and or images for details.
All you need to build this are 8 magnets of 5x2mm (4 are mandatory and 4 optional) and some glue.
You can use PLA Glow filament for the Nuclear sign (like i did it), to have it glow in the dark. ๐

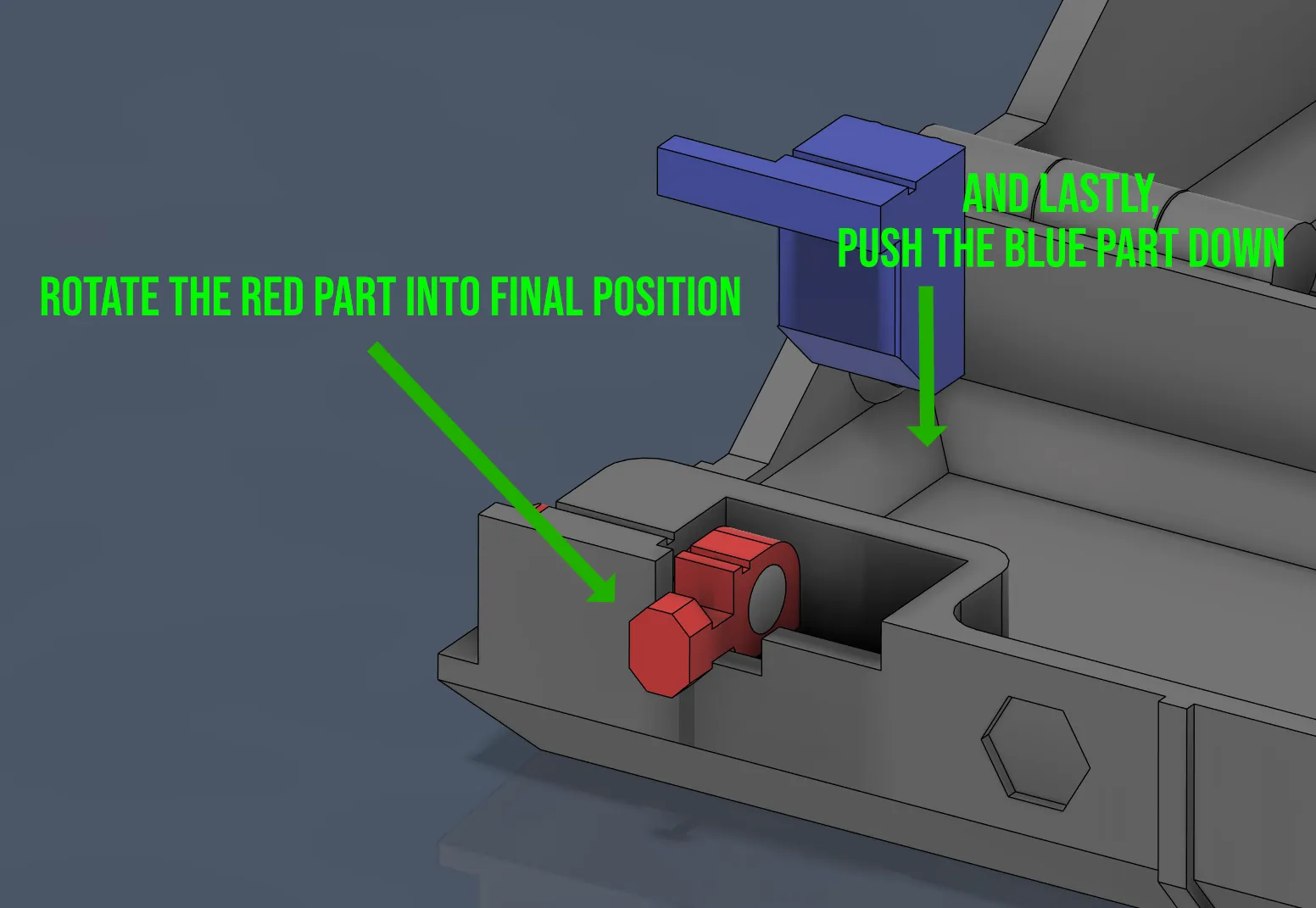

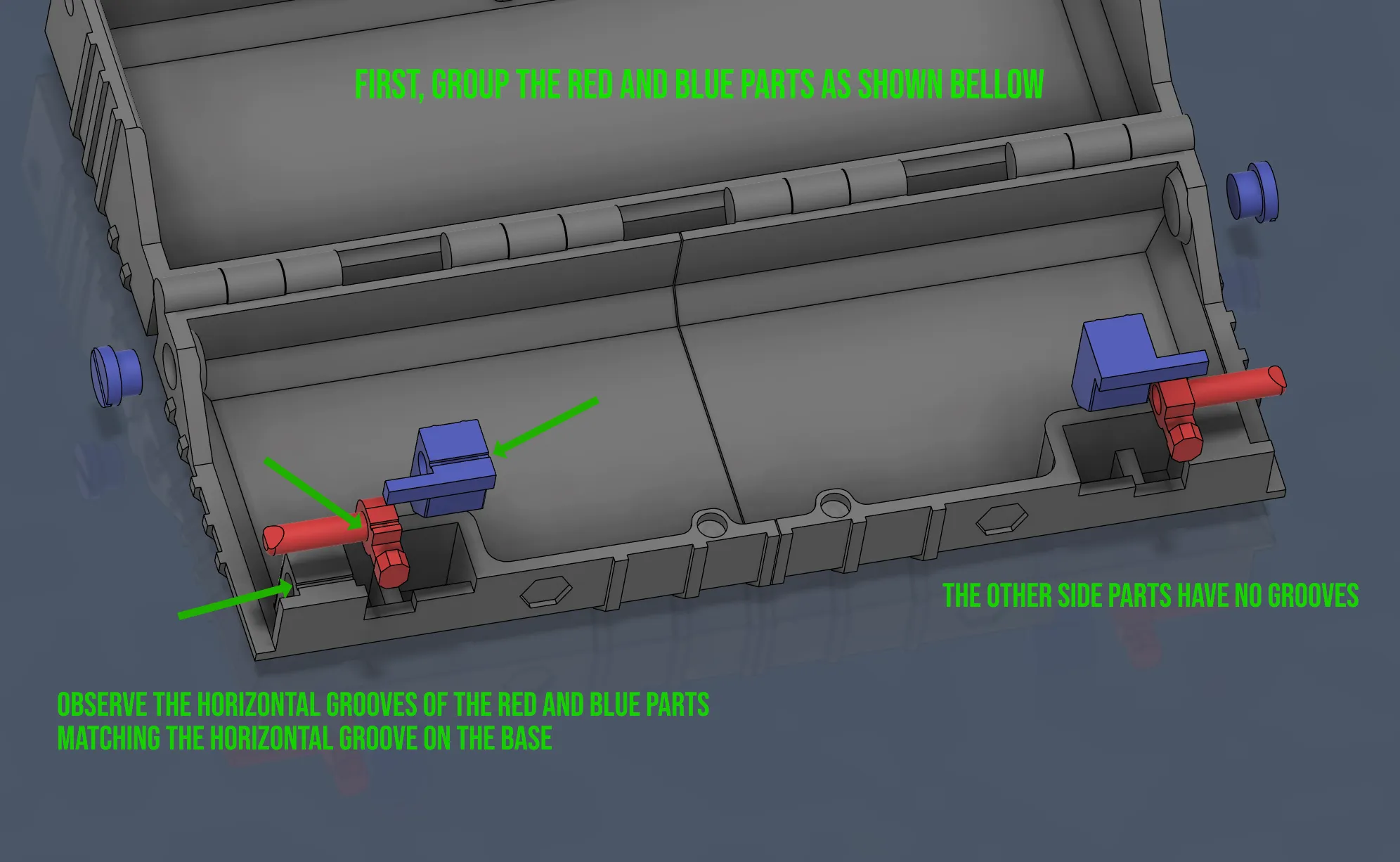

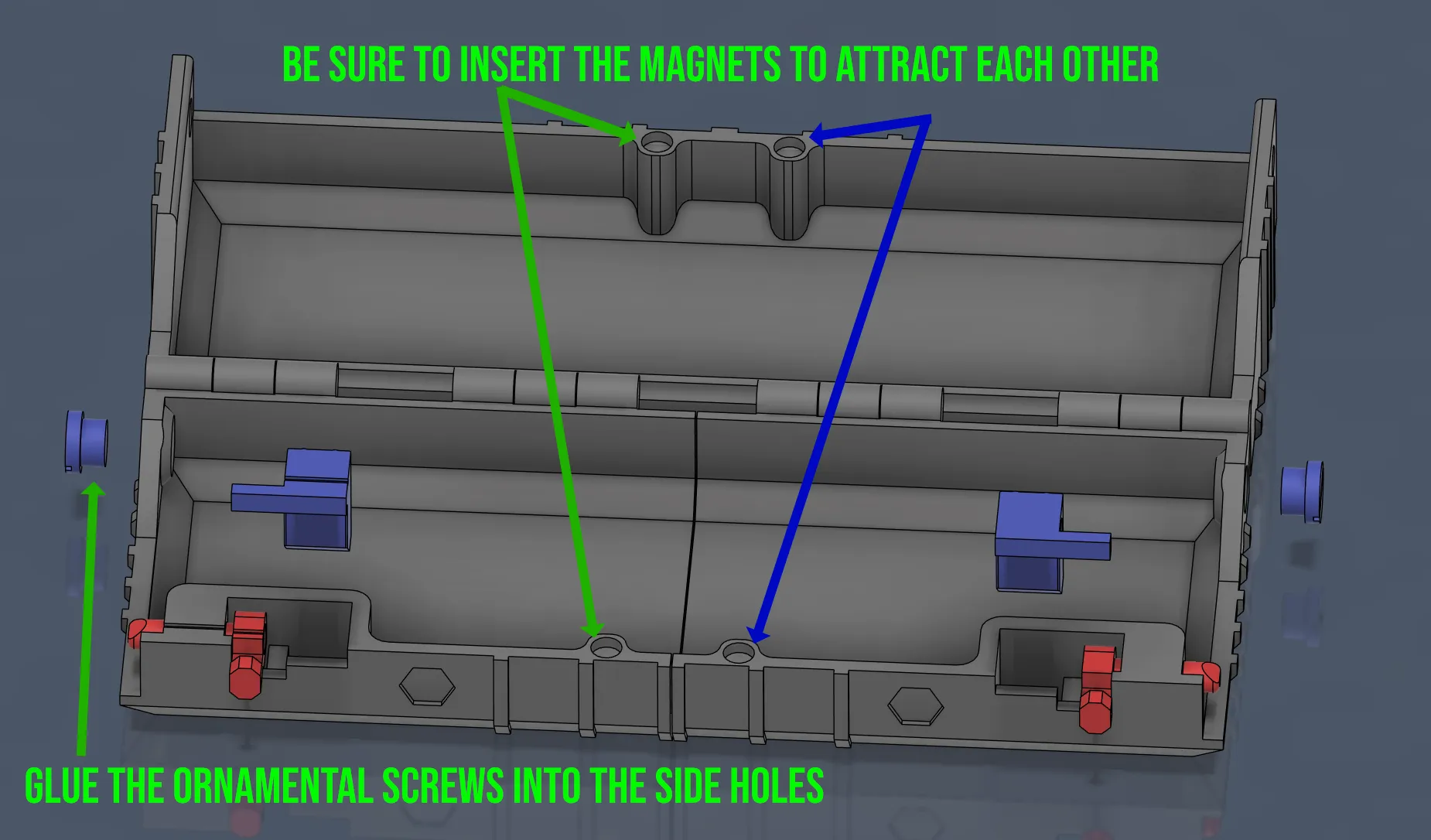

For assembly, you need to pay attention to the magnets orientation, please don’t rush and follow the images for assembly.

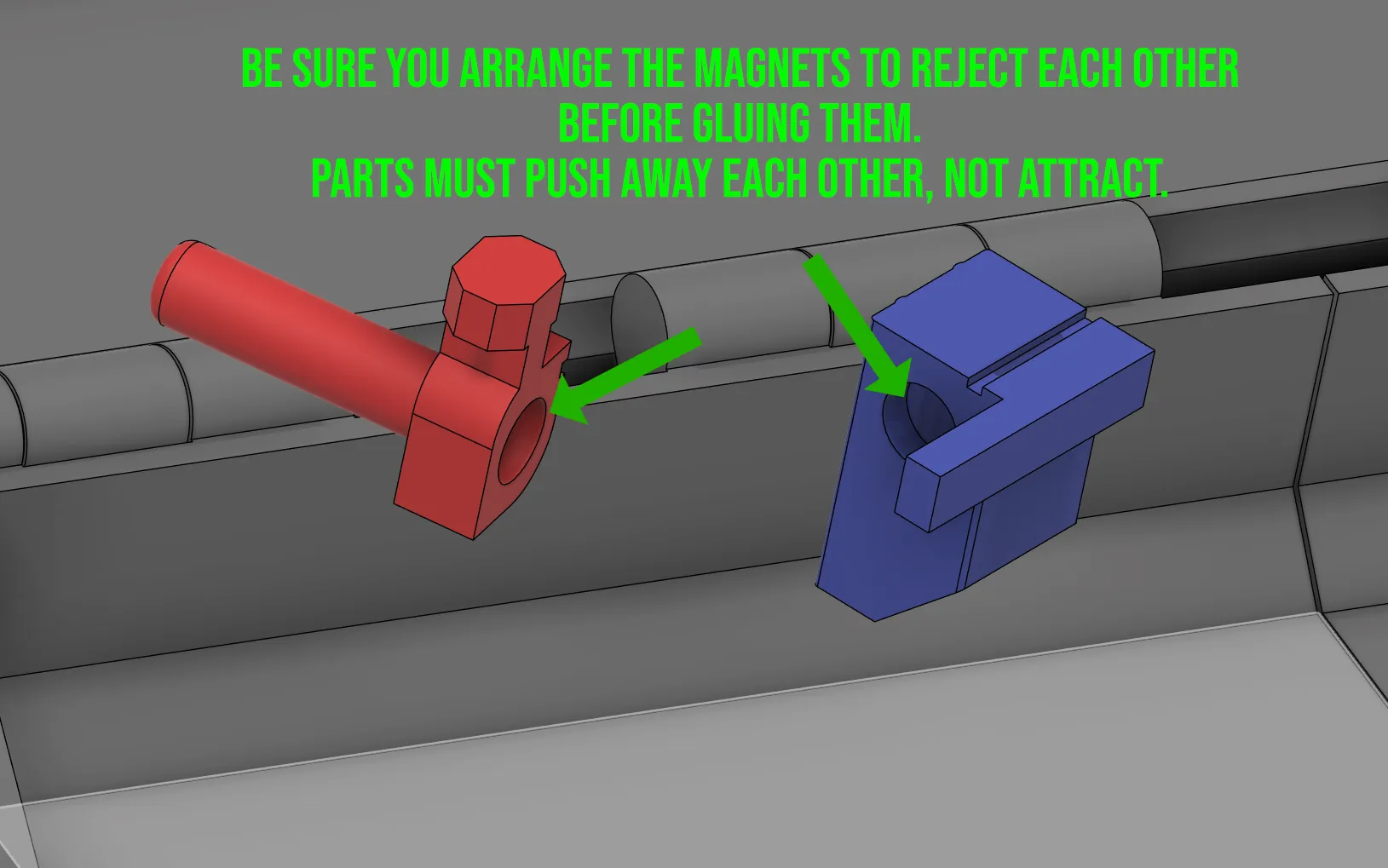

For the lock mechanism, the magnets should reject each other.
Everything should fit easily.

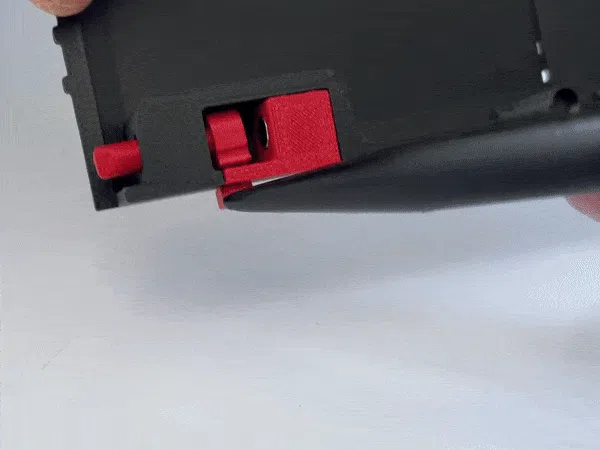

Locking mechanism should work easily (there are tolerances build in) but if it’s not easily locking automatically, please move manually the pin in both directions for some time, to smooth it out.
Credits:
FlorinV
