Update: 5/24/2017
Added locking mechanism to secure switch
Added switchrest-lock.stl (locking mechanism)

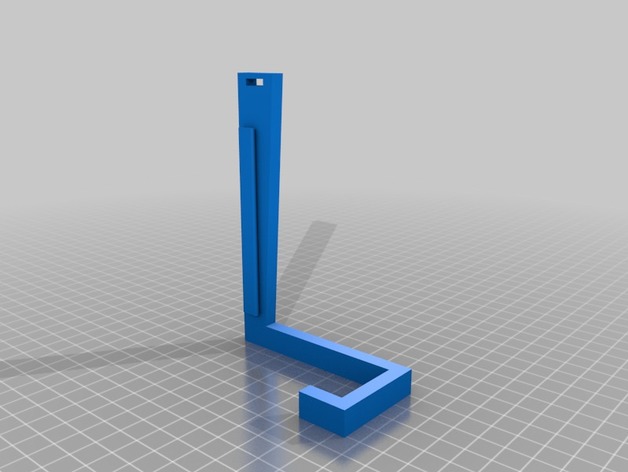

Modified switchrest-left and switchrest-right brackets

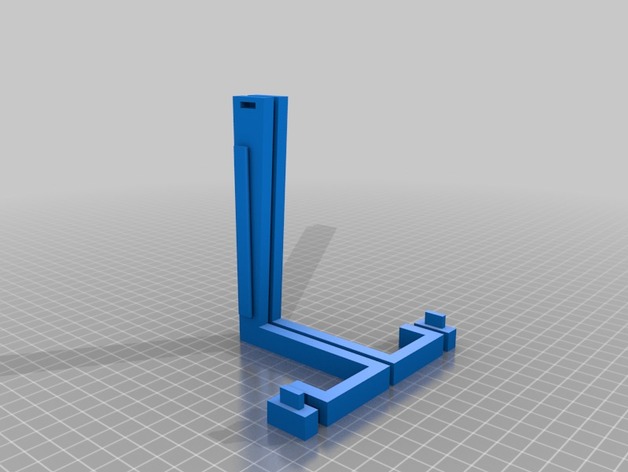

Added switchrest-complete.stl (all components ready to print in a single stl file)
I highly suggest you do some post processing on the locks either sand or file the portion that locks into the rails before using this or you will have a hard time getting them off and possibly break the side rails.
Once you can insert/remove the locks easily proceed to insert your Switch.
With these last changes I consider this completed and I don’t plan on making further edits, suggestions are always welcomed.
Enjoy.
Update: 5/15/17
Added SwitchRest and Switch logos
Added angled bracket so switch air intake has breathing room to prevent overheating
Added correct printing position for all STLs
Added SwitchRest-Left-Right STL contains both brackets ready to print in correct position

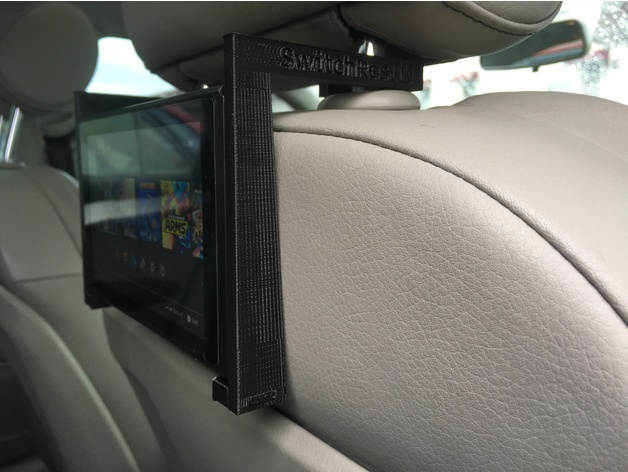

I made this so my daughter could play the Nintendo Switch mounted to my cars headrest while we do road trips.
I suggest you do a solid infill for best durability since these can be a bit tight when placing them on the switch and need a decent amount of force to be removed.
Print Settings
Printer Brand:
Wanhao
Printer:
Wanhao Duplicator i3 V2
Rafts:
No
Supports:
Yes
Resolution:
0.3mm
Infill:
100%
Notes:
Import each stl individually or import switchrest-complete.stl which includes both rails and 2 locks.
Print with 100% infill so it doesn’t break when inserting/removing the locks.
Credits:
benmarte
