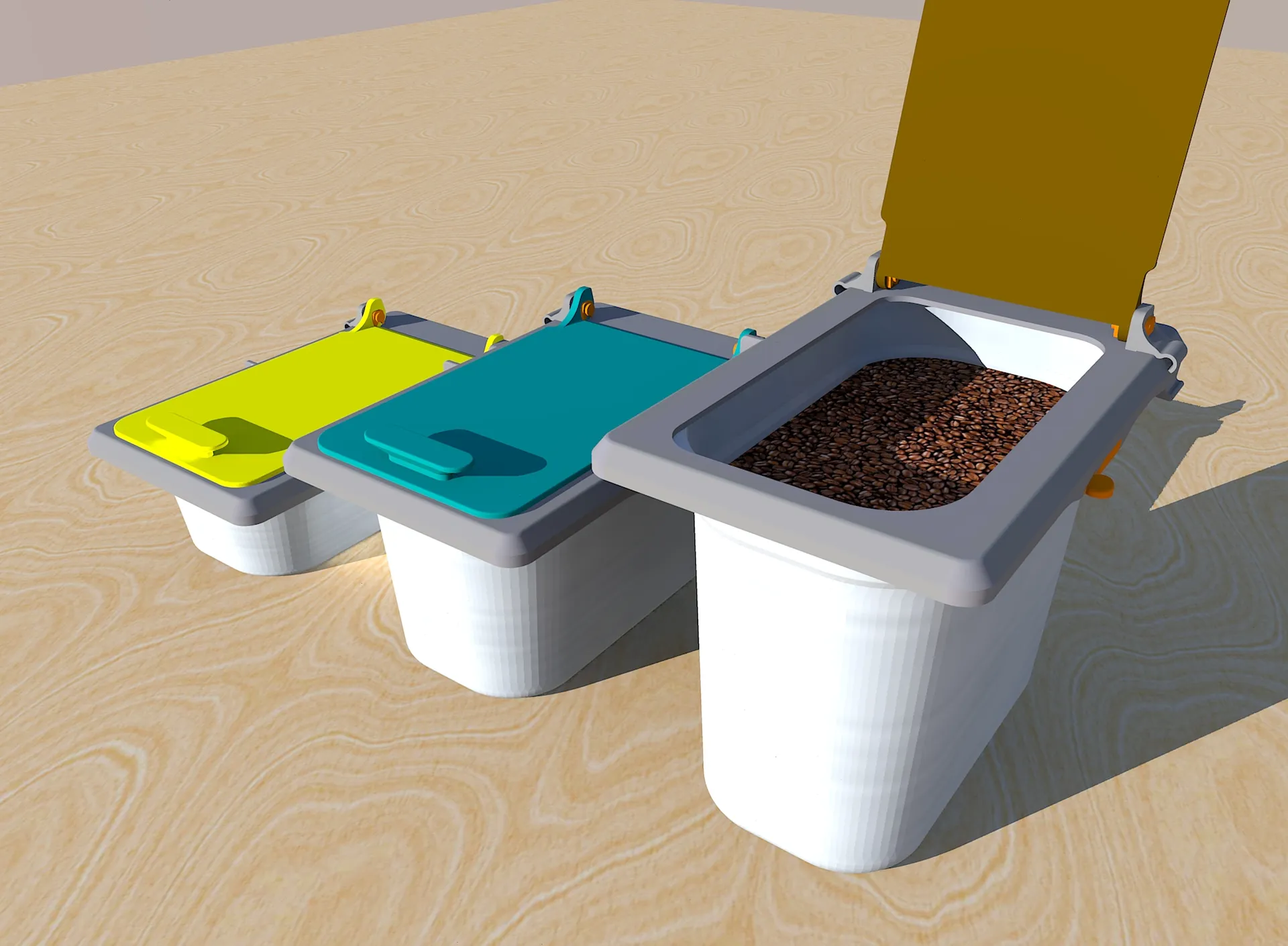

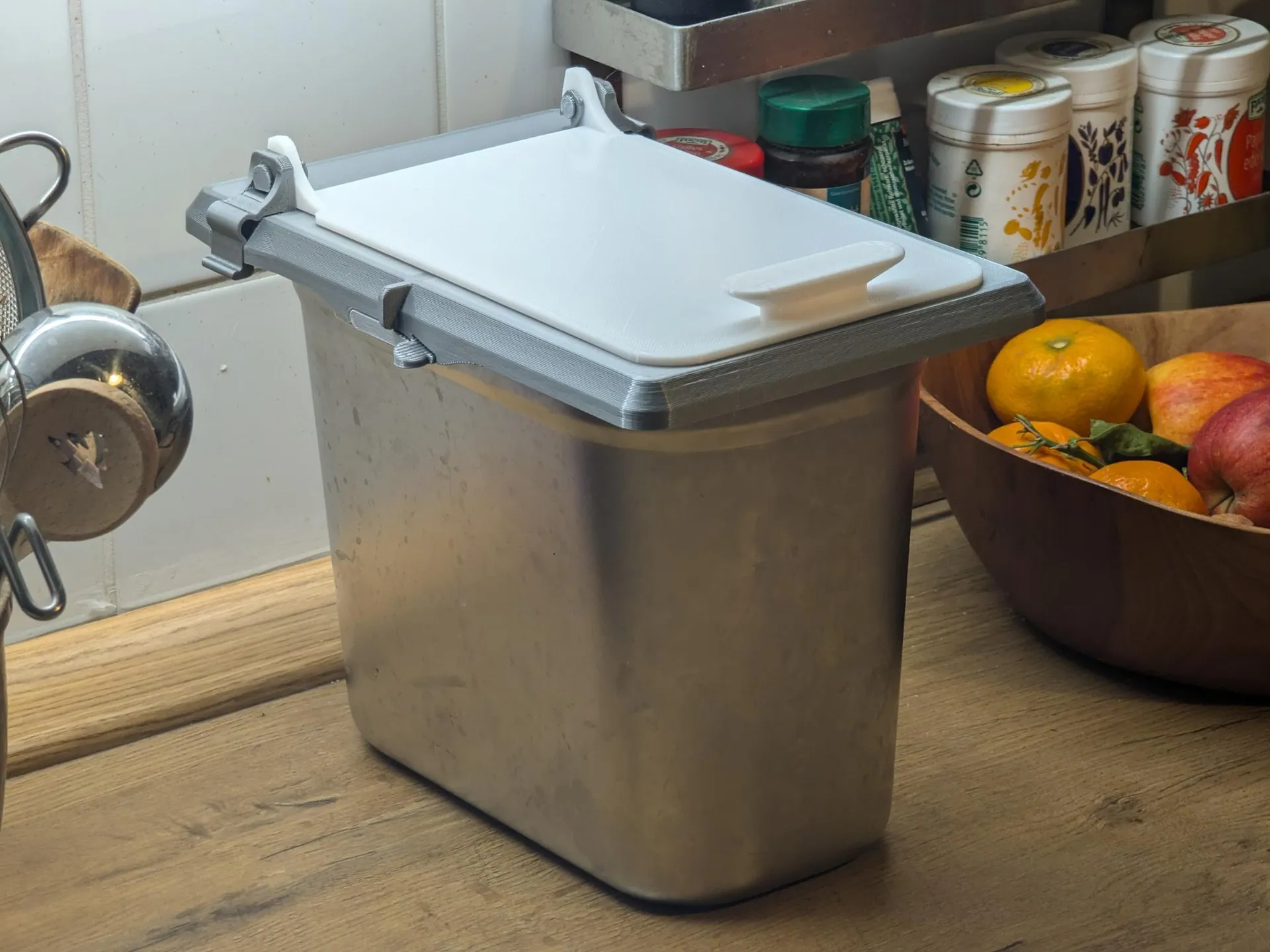

The Gastronorm standard allows affordable containers made of stainless steel but lacks a foldable lid. So I made my own which is closable, sturdy and can be removed easily.
As it does not come into direct contact with the contents, there should be no health hazards due to the plastic material.

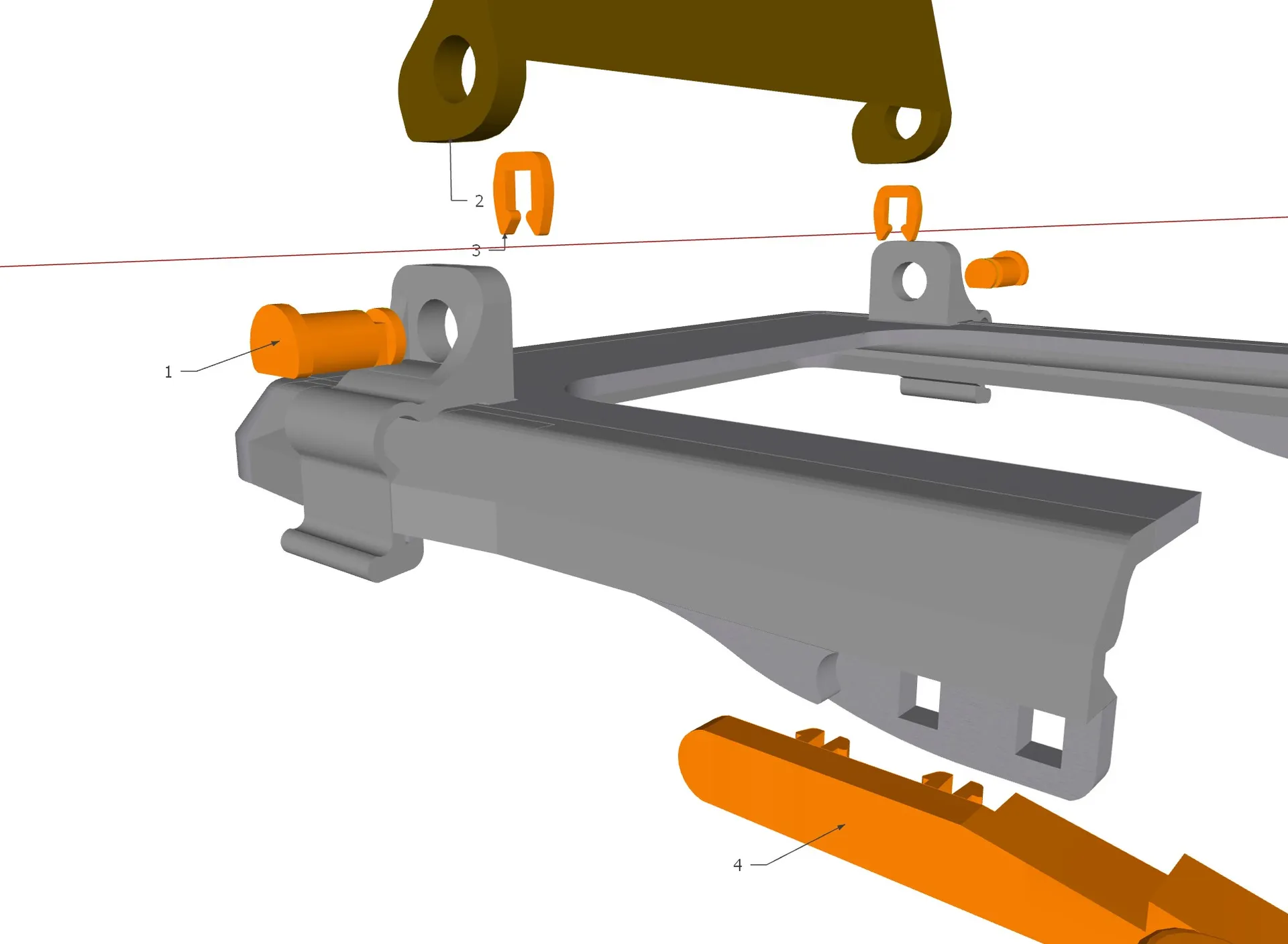

The frame has two parts that slide onto the edges of the container and lock (snapfit).
Printing:
you need a 20×25 cm or bigger print bed! (i.g. regular prusa/bambu)
no supports
I used a fast print profile with 0.6 mm nozzle due to impatience ๐
about 4 h print time with bambu a1
PETG recommended for all smaller parts for flexibility
Credits:
transformat
Download 3D models
| File | File size |
|---|---|
foldable-lid-for-gn-14-containers-coffee-food-storage-model_files
|
2 MB |
