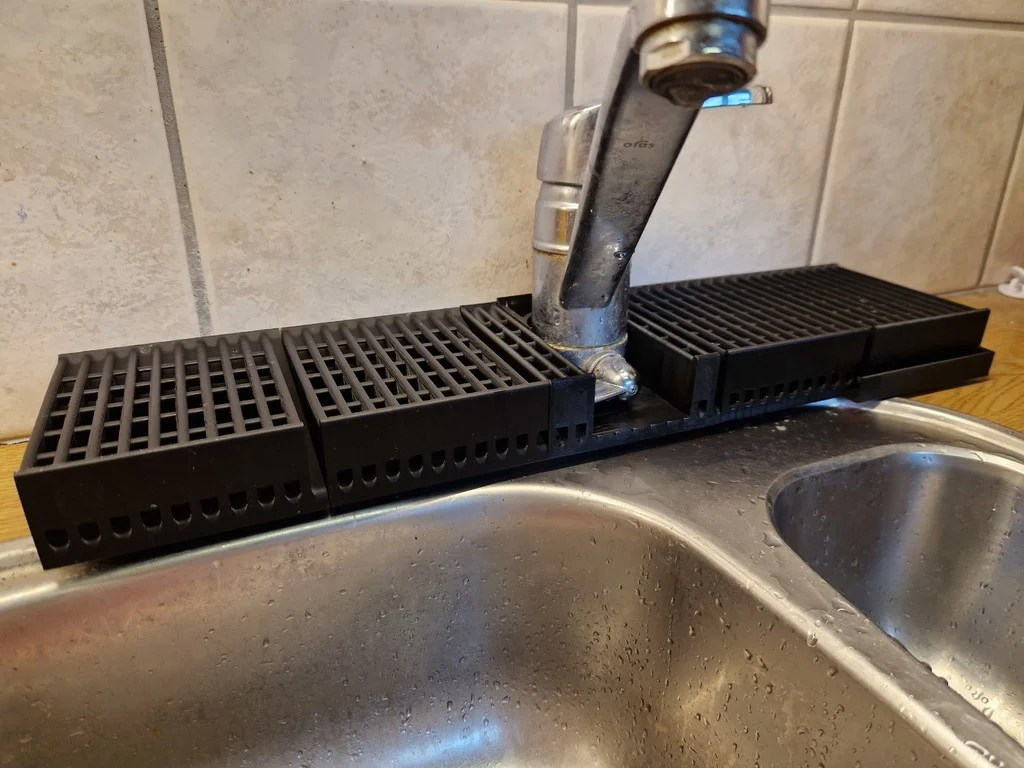

The Left-Middle part was printed left-side-down/right-side-up to make the print layer grooves let the water flow more easily to the sink.
The Far-Right_with_drain_to_left part was printed right-side-down/left-side-up.
The faucet front part was printed front-side-down to avoid supports.
The faucet back part was printed as is, bottom to top with support. There is no draining from this part, but there is a small handle to easily pull it up and empty if necessary.
The modules are for now just taped together on the bottom, but I might glue them together later.
On the parts printed on the side there might be a few loose strings on the top-face ridges. I just cut them off. I also set the temp to 195 C to “hopefully” get less stringing.
I printed with 5-10% infill and 3 outer walls.
My measurements are 56mm diameter for the faucet and the sink edge start 90mm from the wall. There is a high chance that this needs individual adaptation, so I have attached the STEP files.
Print Settings
Printer brand: Creality
Printer: Ender 5
Rafts: No
Supports:No
Resolution: 0.28
Infill: 10%
Filament brand: n/a
Filament material: PLA
Notes:
The faucet back part was printed with support.
Credits:
gunleik
