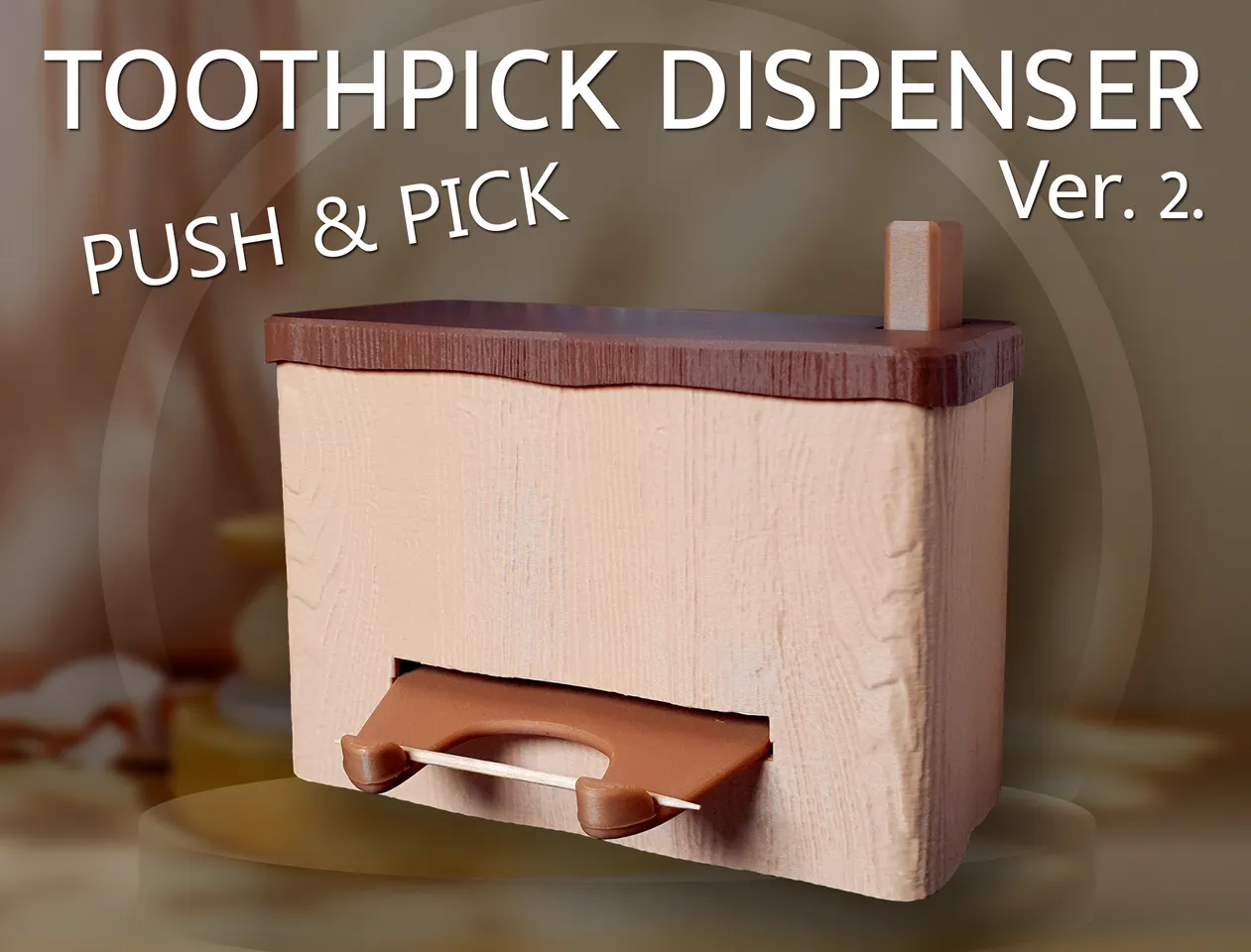

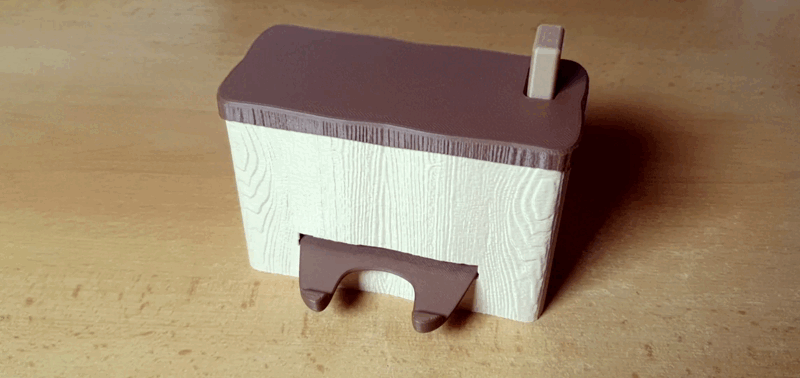

This toothpick dispenser is a fun and practical way to elegantly offer a toothpick! Just press the button – one toothpick rolls forward and you can easily pick it up. Perfect for the kitchen, your desk, or as a surprising little gift.
Tip: Use high-quality, straight toothpicks – they roll better.
Warning: It’s oddly addictive! 😊
🧩 Included parts:
The model consists of several parts:
Outer shell with wood texture
Inner mechanism body
Button with gear teeth
Shaft with a notch for the toothpicks
Left and right side panels
Shaft holder
Spring
Toothpick ramp
Lid
🛠 Assembly instructions – Push & Pick

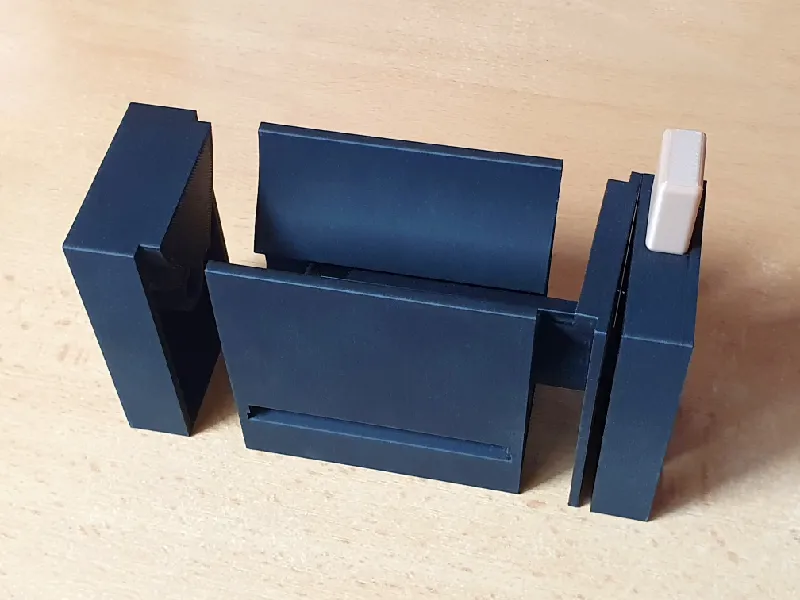

1 Assembling the mechanism body:
Connect the left side panel to the main body (black part).
Insert the shaft with gear into the body.
Close the assembly with the right side panel.
2 Preparing and installing the button:
Snap together the two parts of the button.
The gear teeth on the button must face the side with the small letter T (printed on the button).
Insert the button into the shaft holder so that the teeth face inward toward the shaft.
Pull the button up to its highest position.

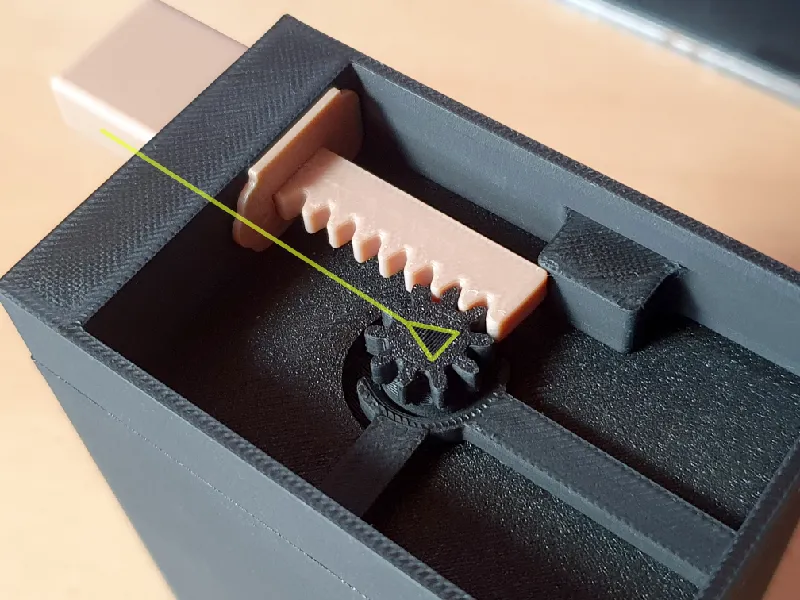

Mount the button onto the shaft so that:
the arrow on the shaft points upward
the gear teeth mesh correctly.

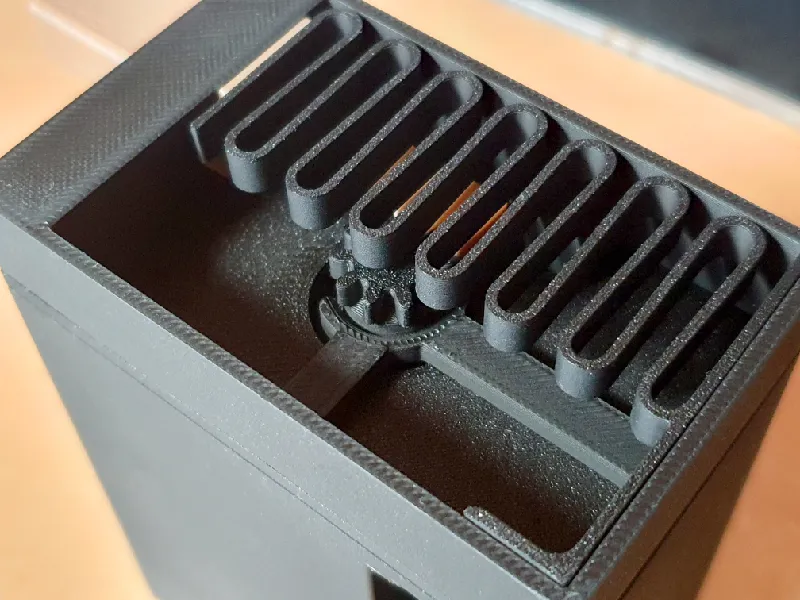

Insert the spring under the button so it pushes the button upward.
3 Final assembly:
Slide the entire mechanism into the outer shell.
Fill the dispenser with toothpicks.
Close it with the top lid.
Insert the front ramp all the way into the front slot.
🖨 Print information:
You can print the inner mechanical parts on a single build plate.
The outer body, button, and lid deserve their own plate for the best visible surface quality. 😊
