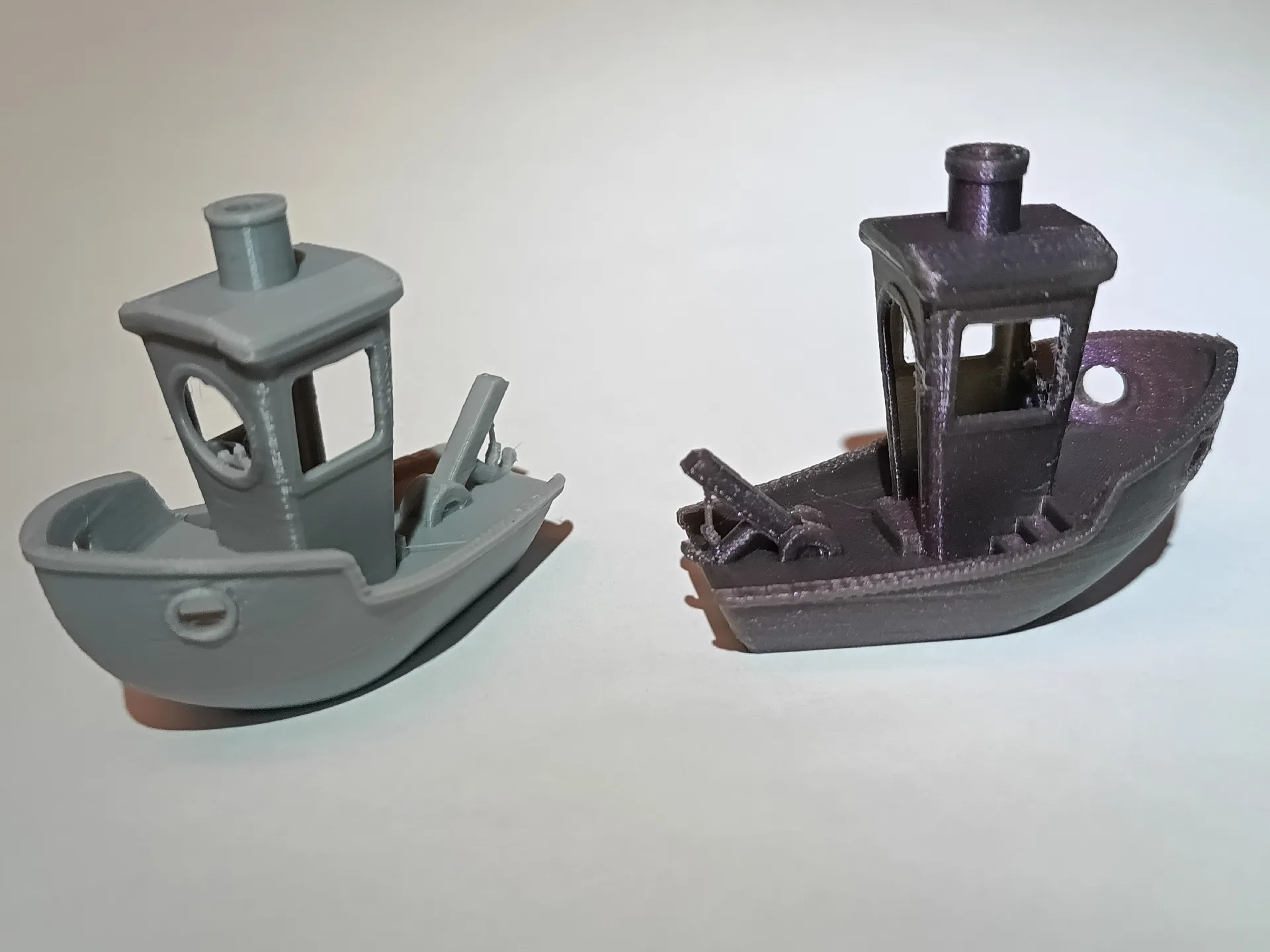

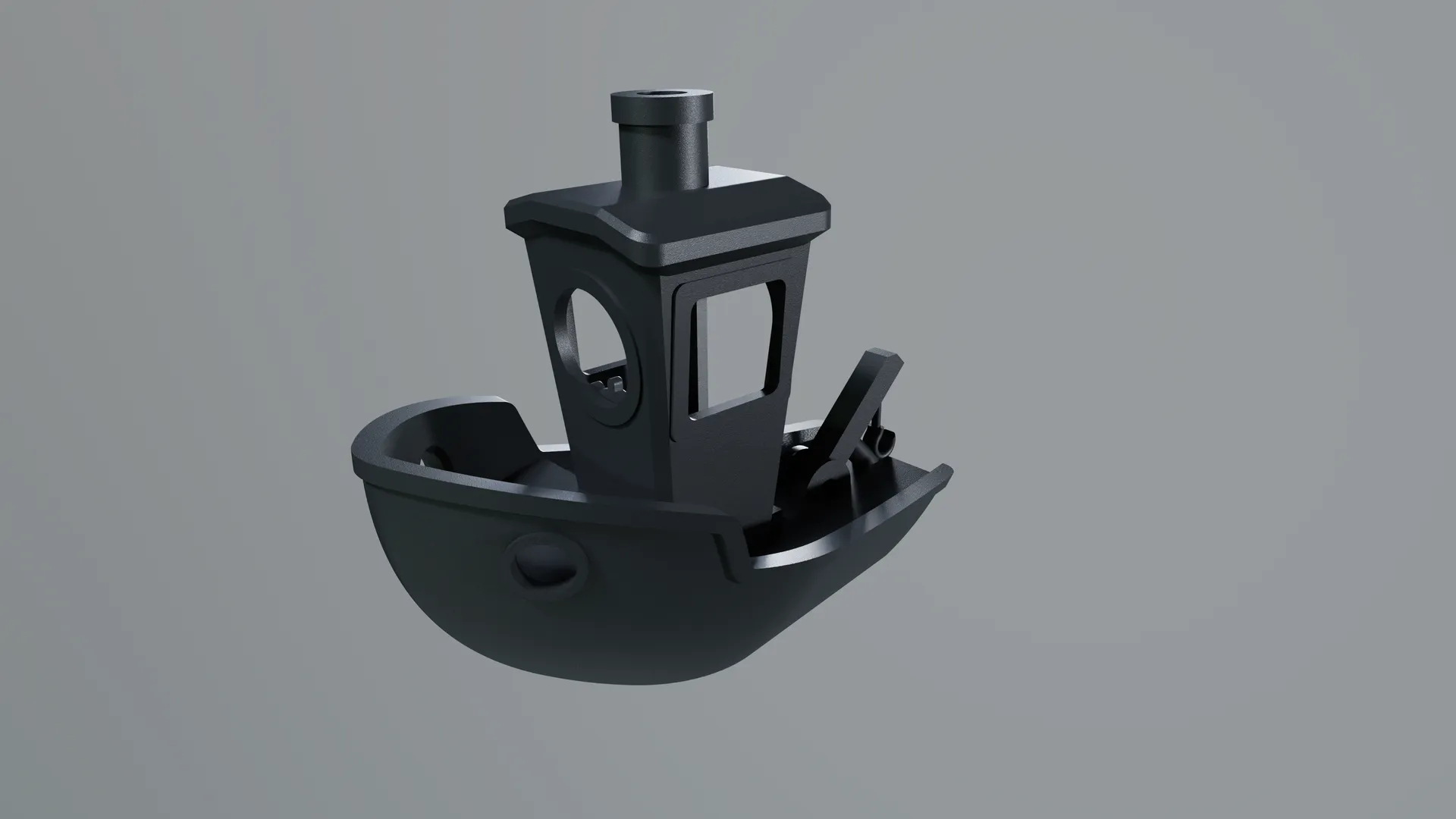

This tugboat is designed to be ๐ด๐ช๐ฎ๐ช๐ญ๐ข๐ณ to the infamous #3DBenchy, while sharing absolutely zero geometry, planes, or critical dimensions.
Due to a change in ownership of the Benchy asset, the new owners are removing all the wild, wonderful and wacky remixes of the original on many platforms, especially Printables. This is not due to copyright, but to original files being uploaded under the Creative Commons – Attribution – No Derivatives license. The Benchy has become an iconic staple of the 3D printing community. I wanted to create something to fill the gap for those crazy creators who wanted to design and print a little boat version of Dwayne “The Rock” Johnson, or any other bizarre mashup that has become such a fun element of this community.
The Tuggy is ๐ด๐ช๐ฎ๐ช๐ญ๐ข๐ณ, but not a direct copy or modified file. Due to the nature of Patent, Trademark and Copyright Laws, it is highly unlikely that the Benchy is fit to file for any such protective embellishment. Ergo, the Tuggy is unlikely to become a victim of legal persecution in the future- and with it’s open-source nature, neither will all of your crazy remixes.
I hope you enjoy it. I cannot wait to see what you do with this little boat!

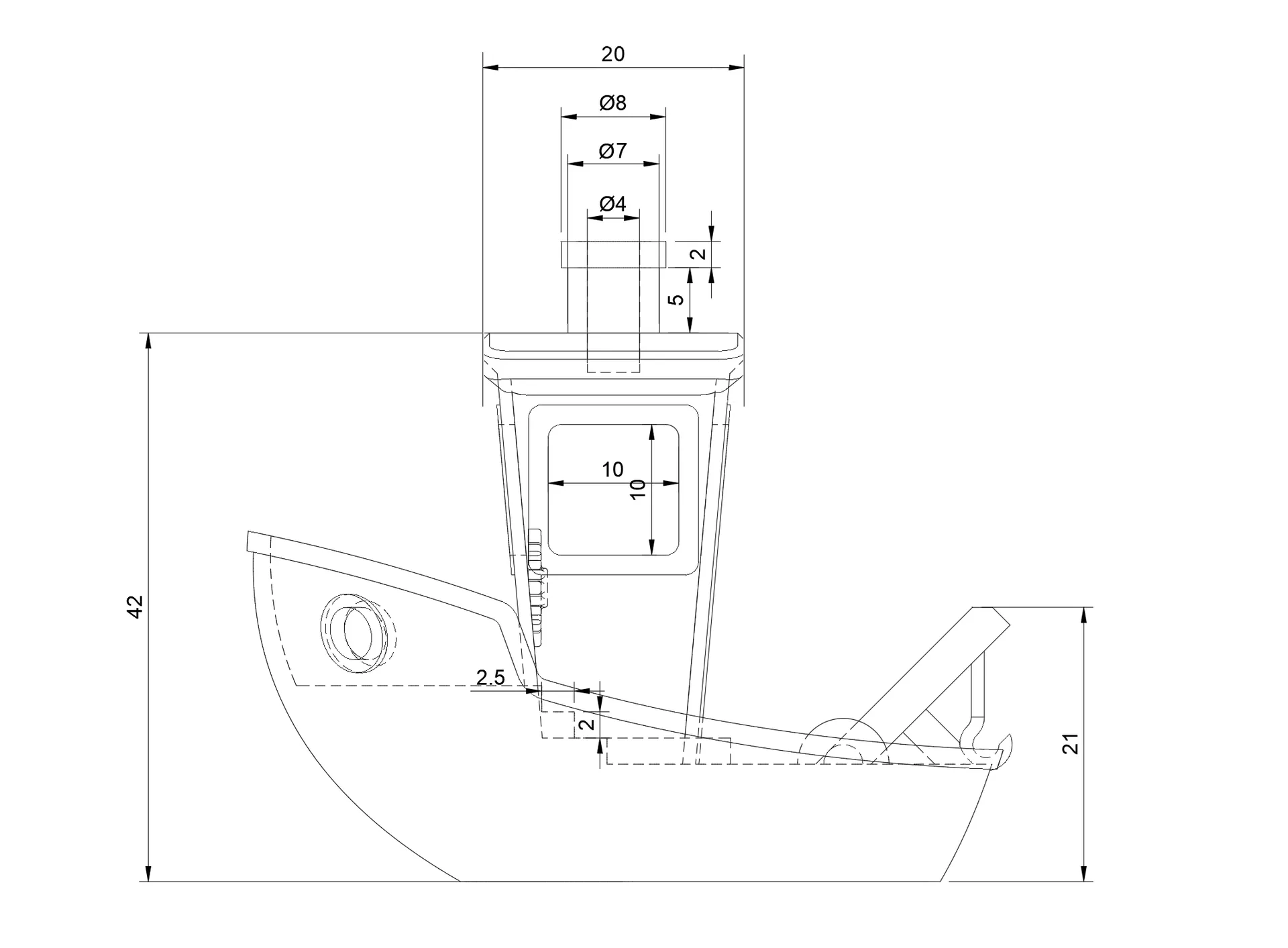

Dimensions listed in image & more:
Base to Chimney Top: 49mm
Base to Roof: 42mm
Roof (L=>R AND F=>B): 20mm
Base to Crane Boom Top: 21mm
Square Window: 10x10mm
Front Window: โ10mm
Chimney to Chimney Flange: โ7x5h mm
Chimney Flange: โ8x2h mm
Chimney Hole: โ4mm, 10mm Depth
Inside of Tow Hook: โ2mm
Tow Rope: โ1mm
Crane Boom: 3x3mm, 45ยฐ
๐๐ข๐ธ๐ด๐ฆ๐ฑ๐ช๐ฑ๐ฆ ID: โ4.5mm
BoatHole: โ2mm x 2mm Depth
Stairs Rise and Run: 2mm, 2.5mm respectively.
The widest point on the Tuggy is ~33mm, and a measurement from top of Bow to vertical center of Stern is ~59mm
Every dimension has a purpose, and every geometrical feature is necessary as a point of calibration for your printer and printing medium.
With typical default FDM slicer settings, a Tuggy takes ~9-10 Grams of filament, and should print in well under two hours.
.STEP file and high-poly .3mf included.
License is Creative Commons Attribution 4.0 International. You are free to sell, distribute, share, remix- basically whatever you want, as long as you appropriately credit this original work. Get weird with it.
๐๐๐ฑ๐ญ ๐ญ๐ข๐ฆ๐ ๐ฒ๐จ๐ฎ ๐ฐ๐๐ง๐ญ ๐ญ๐จ ๐ฉ๐ซ๐ข๐ง๐ญ ๐ ๐ฅ๐ข๐ญ๐ญ๐ฅ๐ ๐๐จ๐๐ญ, ๐ฐ๐จ๐ฎ๐ฅ๐๐ง’๐ญ ๐ฒ๐จ๐ฎ ๐ซ๐๐ญ๐ก๐๐ซ ๐ก๐๐ฏ๐ ๐ ๐๐ฎ๐ ๐ ๐ฒ?
Credits:
Optimal Objects
