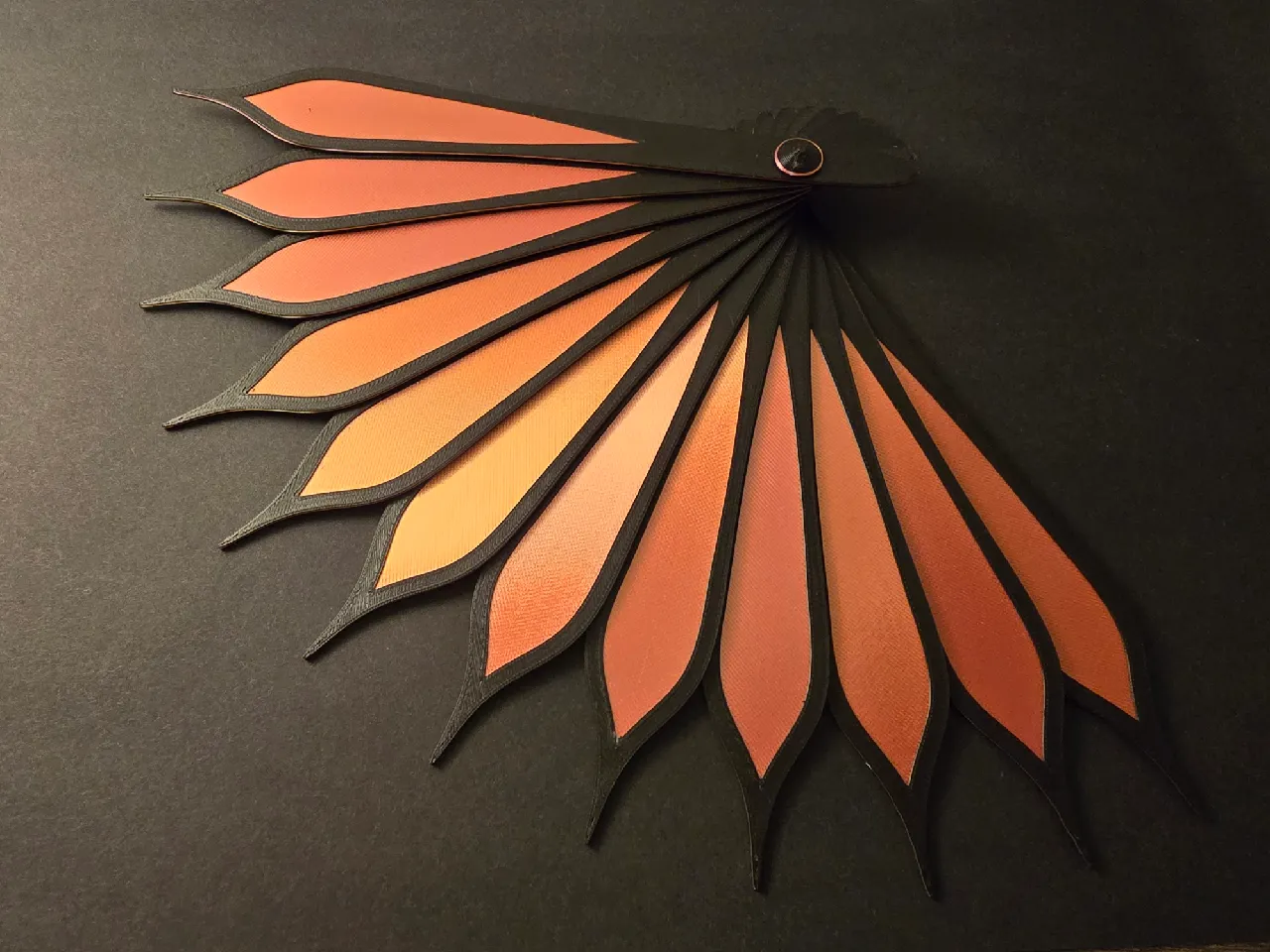

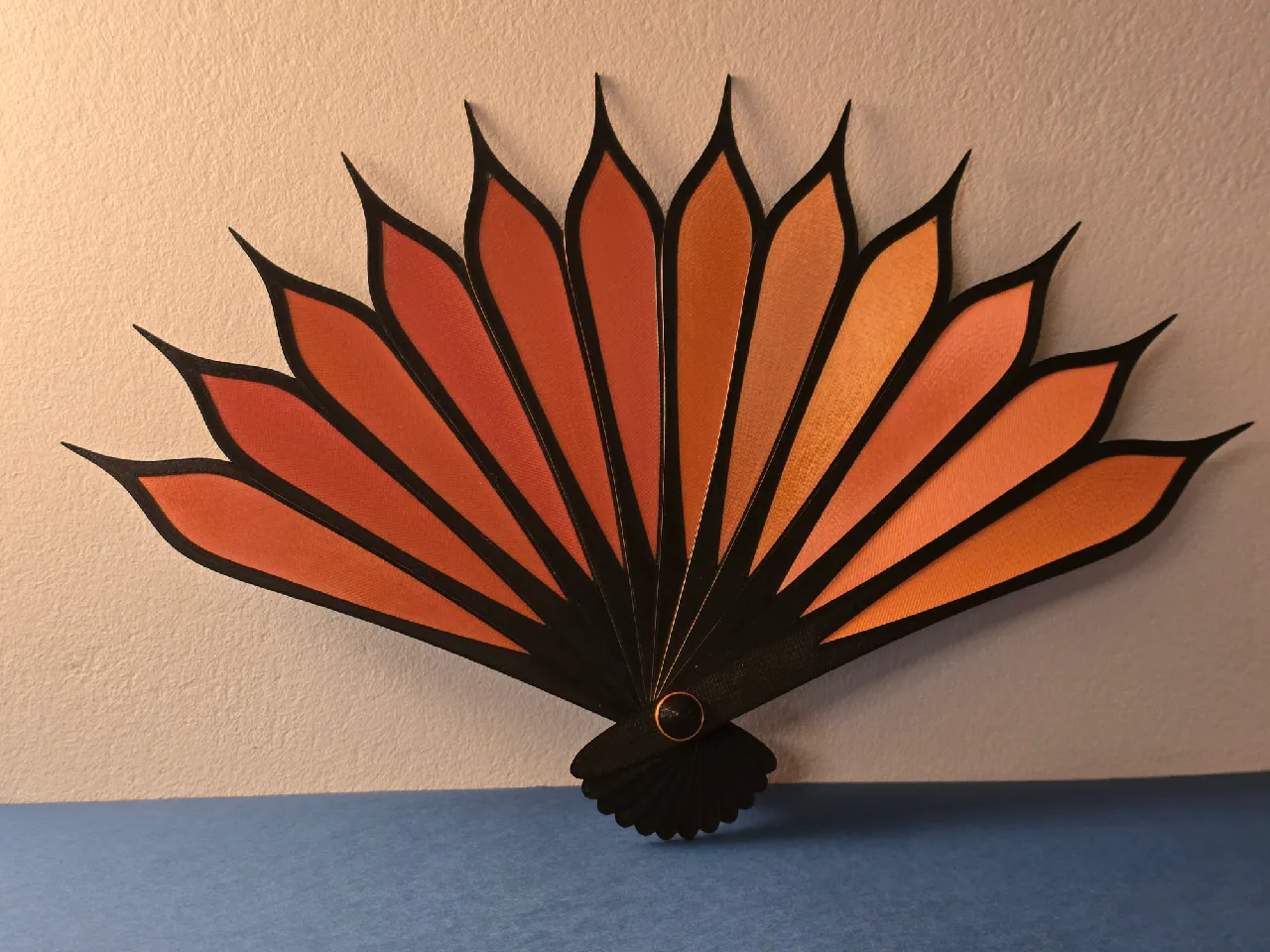

A folding fan composed of twelve interlocking blades, printed flat and assembled using a central pin and cap system.
This is my entry for the Create a Breeze! contest.
Parts to print:
10 × middle fan blade
1 × bottom fan blade
1 × top fan blade
1 × central pin
1 × locking cap
PLA works great for this model – the stiffer, the better.
I used Fiberlogy Easy PLA for the black parts and Bambu Gilded Rose PLA Silk for the orange color.
All parts are already in the orientation ready to print. No supports needed.
The design supports two-color printing using filament change. If printing with 0.2 mm layer height, add color changes on layers #5 and #7.
Print settings:
Nozzle size: 0.4 mm (other sizes may work too)
Layer height: 0.2 mm
Top infill pattern: Monotonic lines
Solid layers: 5 top / 4 bottom
Seam position: Back
Assembly:
The bottom blade goes first, on the bottom. The top blade goes as the last one, on top. Stack all twelve blades and align them with the central pin.
In case of pin being too tight or loose, you may adjust it by scaling in the slicer.
The cap should be glued to the pin to keep it secure. Press it firmly to leave no clearance between the blades. Use small amount of glue to prevent it from leaking onto the blade. Super Glue or other cyanoacrylic should be fine.
The fan can be opened and closed smoothly thanks to integrated pins and slots that limit the movement range of each blade.
⚠ Safety Warning:
This is not a toy – keep away from small children.
The fan contains small parts that may pose a choking hazard, and the blade tips can be sharp. Adult supervision is recommended if used as a prop or costume accessory.
