This new design addressed three issues I wasn’t happy with:
The SD Hatch: Taking of the SD card was too much of a problem. The new port makes it a lot easier.
RPI leds: The previous case hidded the RPI leds. There’s now a viewport to allow for viewing.

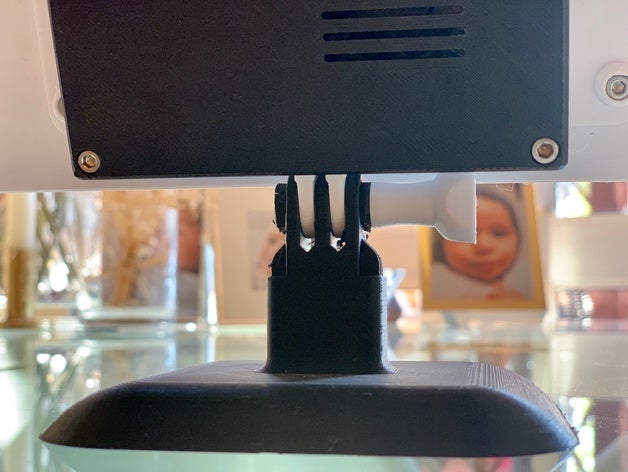

Stand/Mount: there is now a nice mount GoPro style. With it it is easy to adjust viewing angle. It is fully compatible with any GoPro mount you might find.
You will need in addition to the previous make:
1 M3x3.5cm screw for the know. Just screw it in until it reaches the end. Do not do too much force.
1 M3x5.5mm square nut. this will be inserted on the top of the stand and is where the know screws in.
ATTENTION: This case is a much tighter fit than the previous one. Don’t forget to remove the SD card previous to installation. You should try to move the ribbon cable out of the way to the left side facing up.
Credits:
Jacaeiro
Download 3D models
| File | File size |
|---|---|

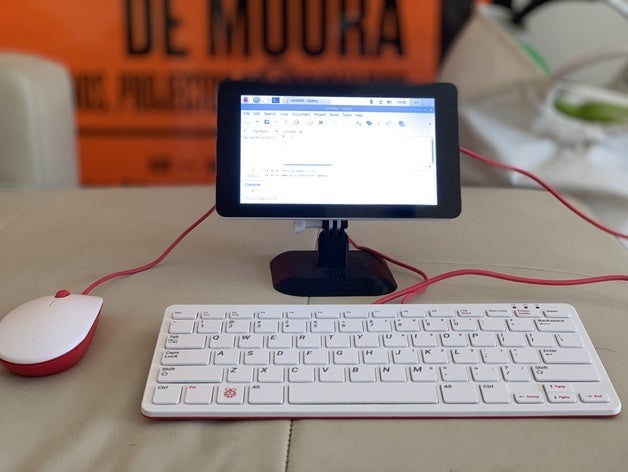

Raspberry 7 inch TouchScreen Case with Stand
|
1,007 KB |
