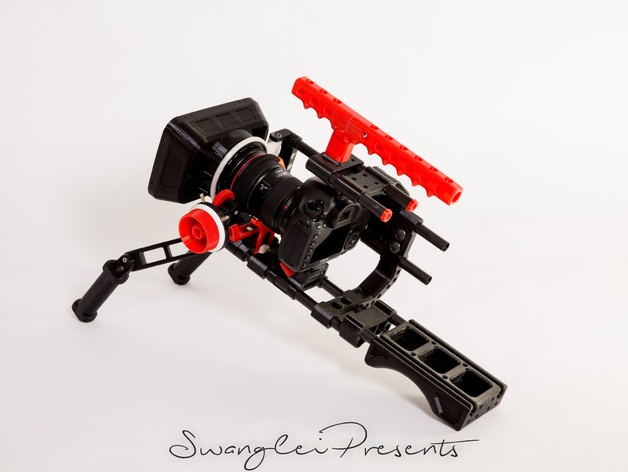

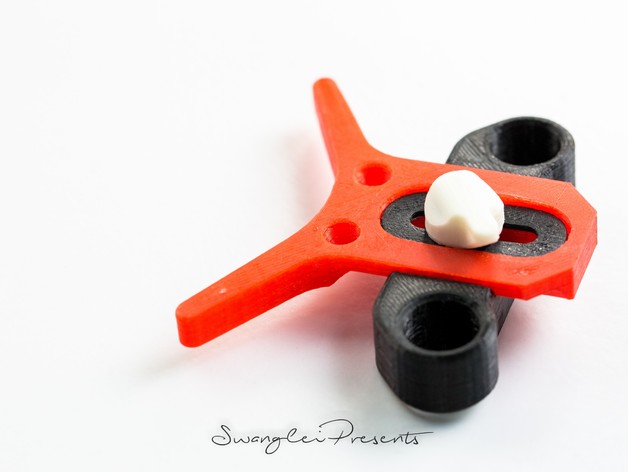

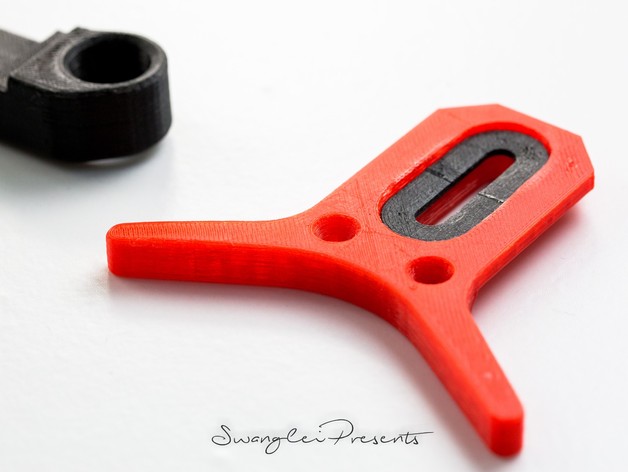

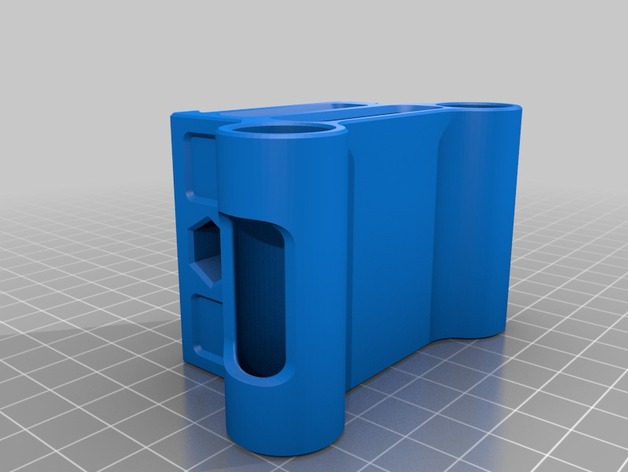

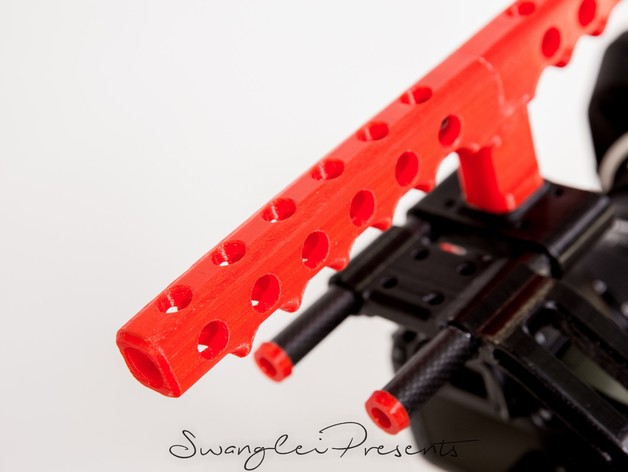

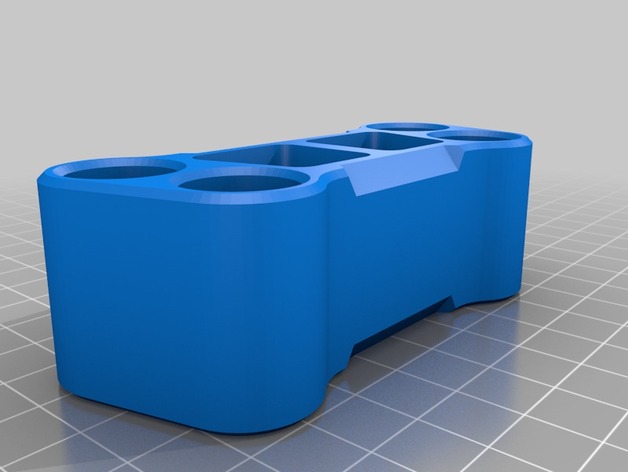

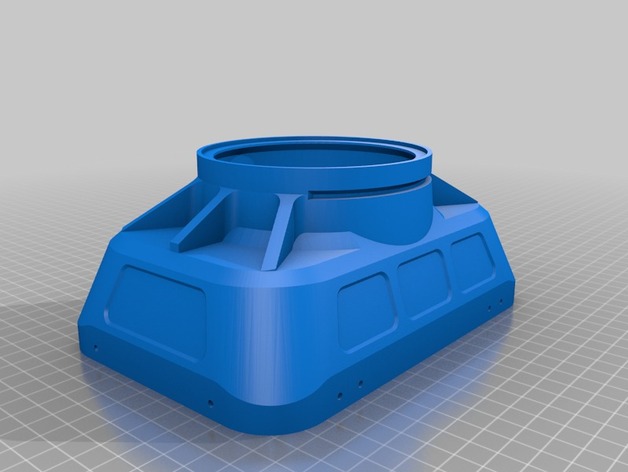

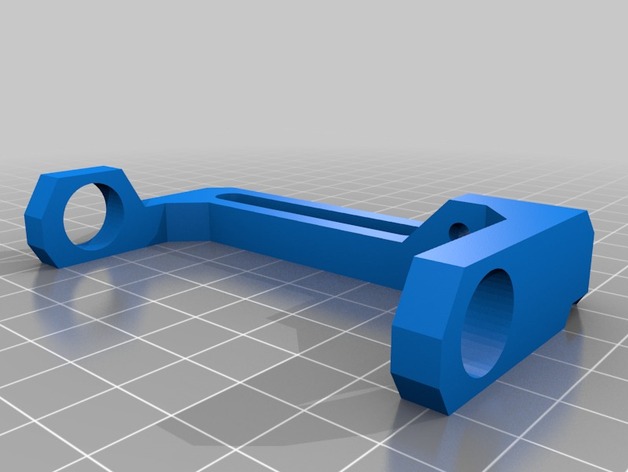

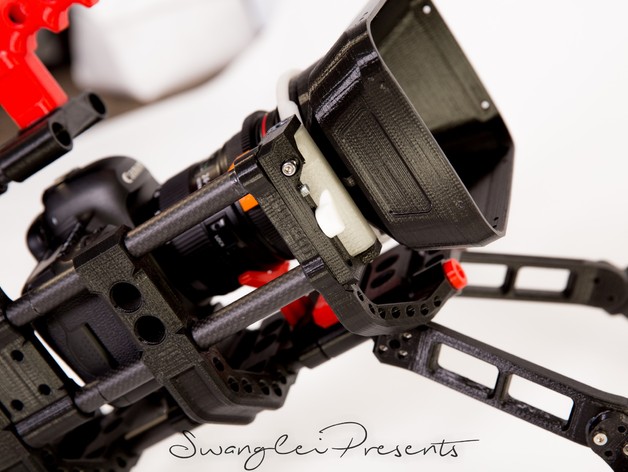

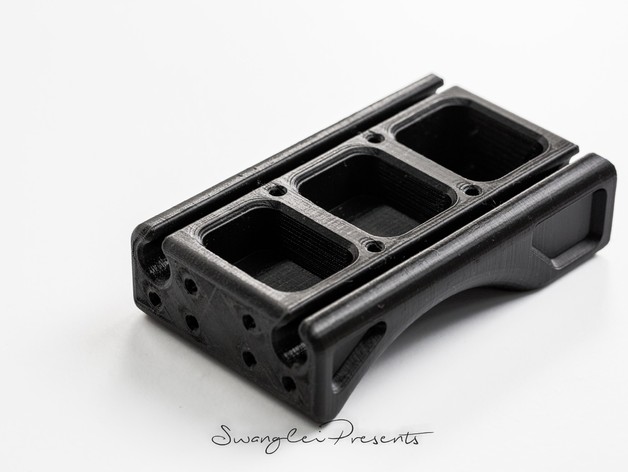

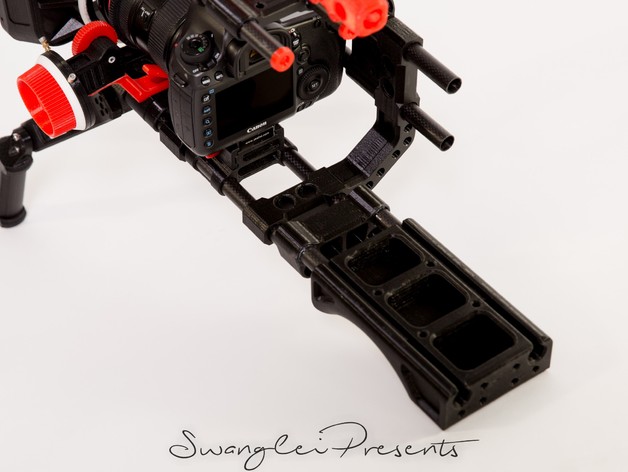

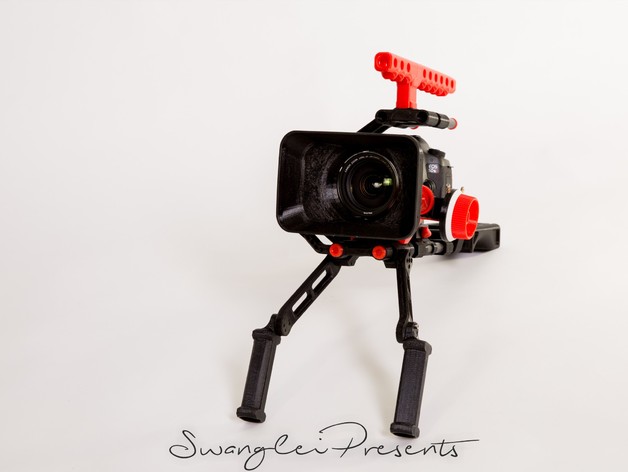

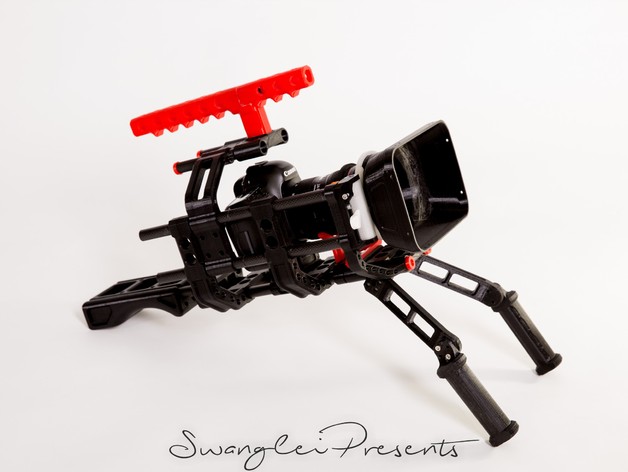

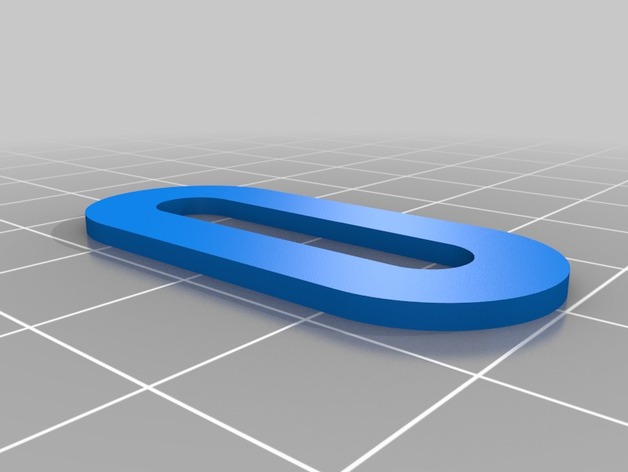

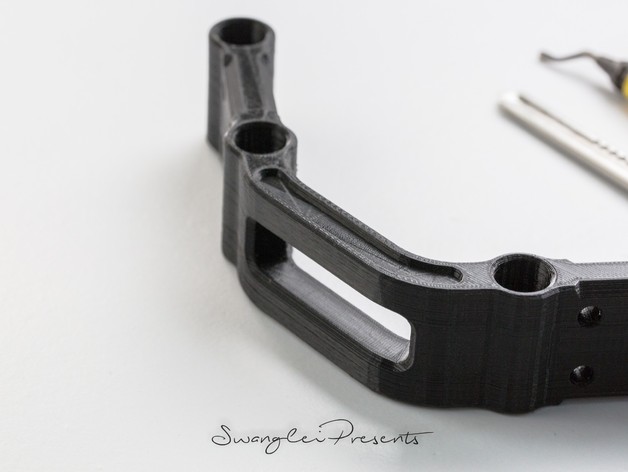

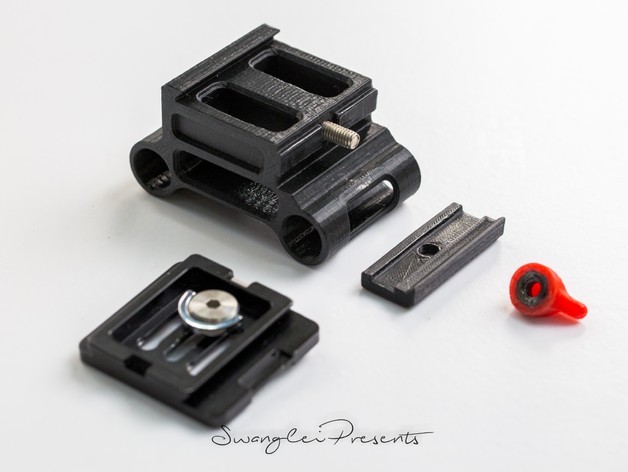

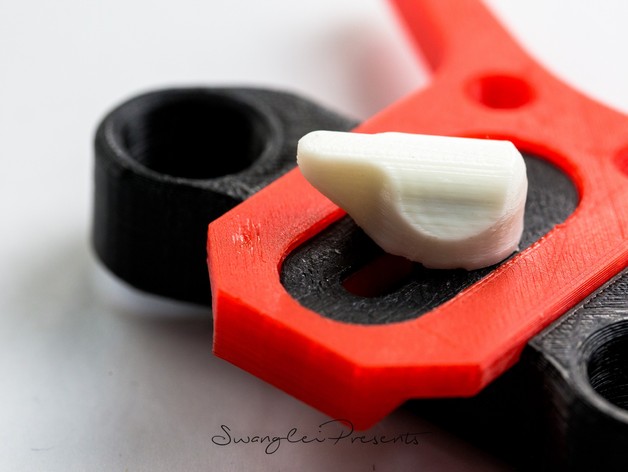

Shoulder Rig V2.0

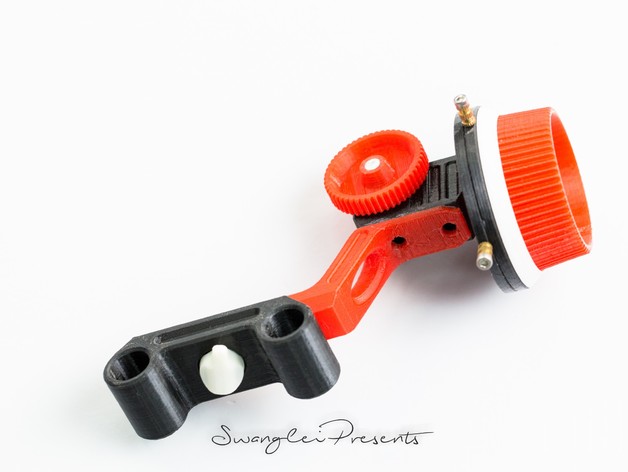

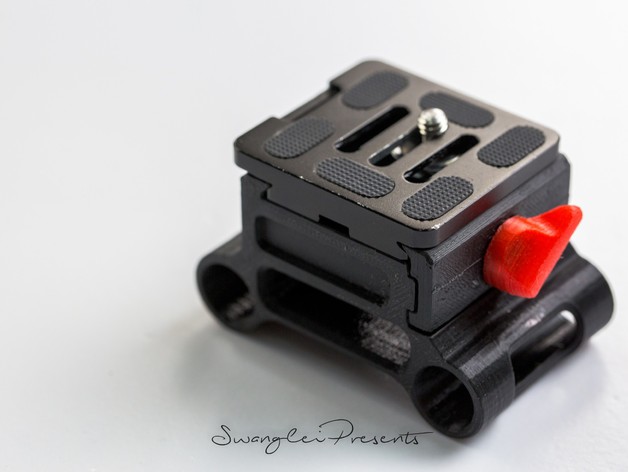

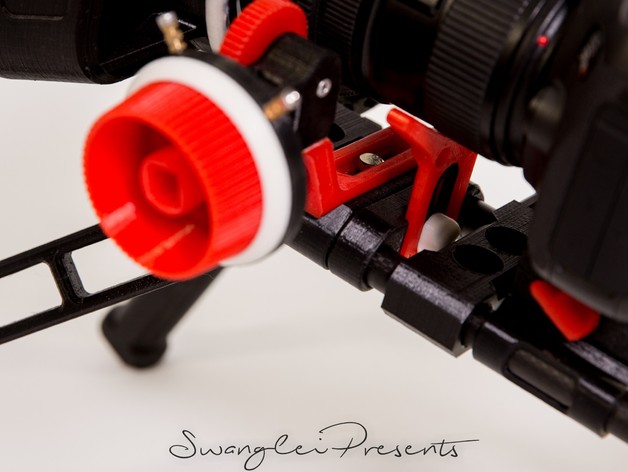

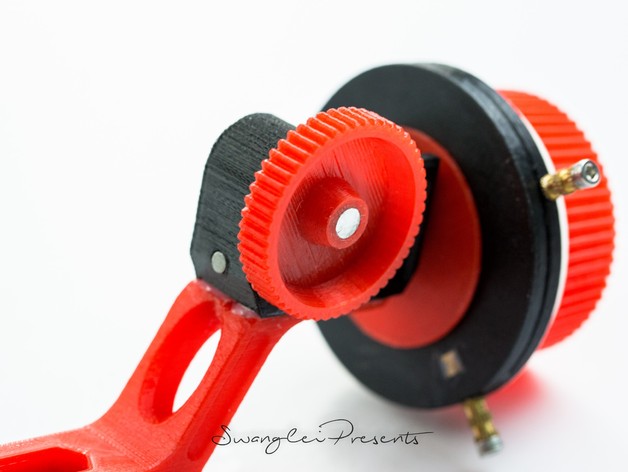

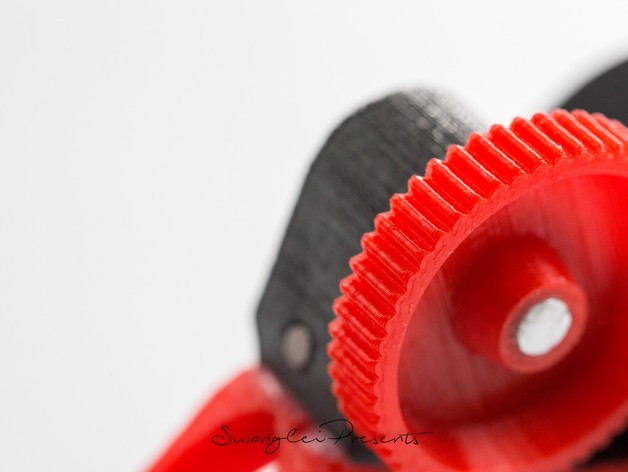

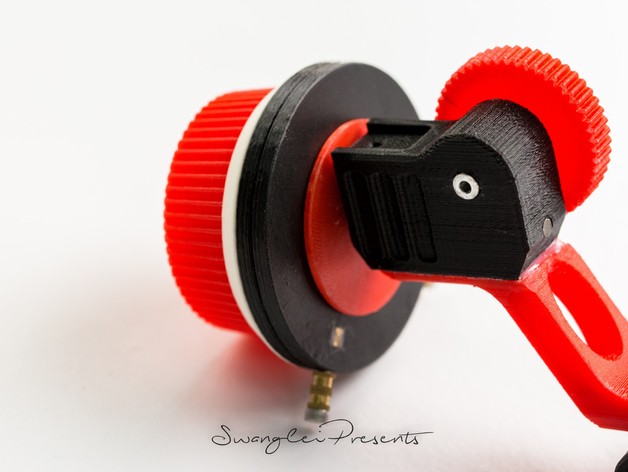

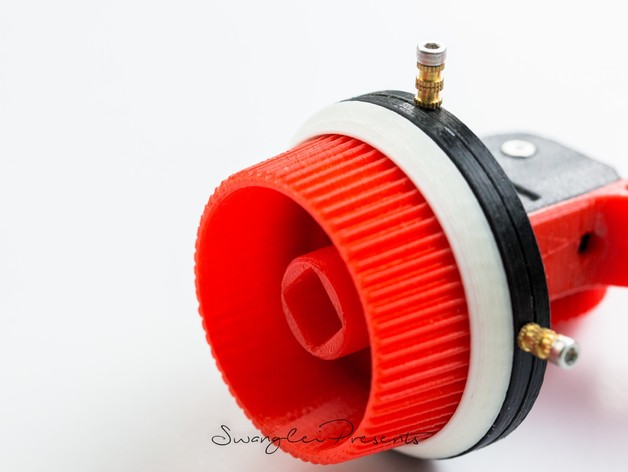

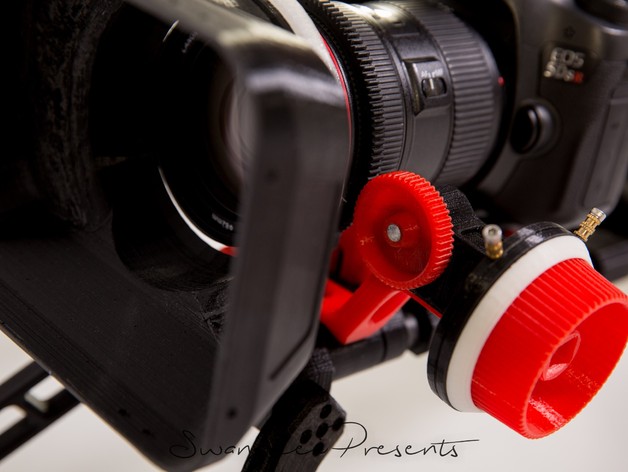

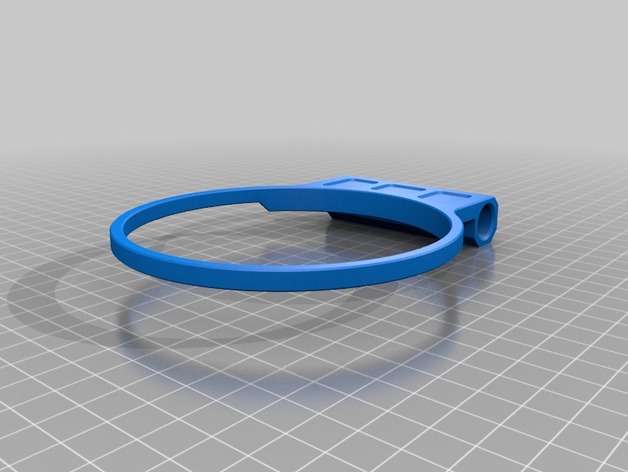

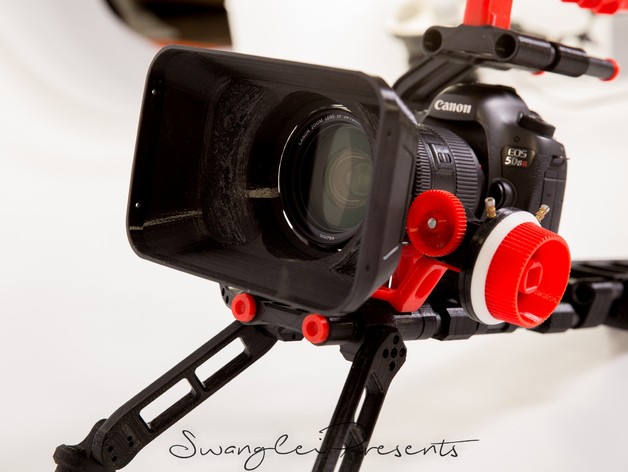

I have designed my second version of the follow focus just like the pictures,but I wil publish it on the other “thing”,after I finished my total tutorial,i will stick the link to this theme。(this design I knowed that it is a little difficult for makers to make one because it needs some customed made part like the worm gear ,that most of you i think you don’t want to buy)

And the worm gear link: https://item.taobao.com/item.htm?spm=a1z09.2.0.0.NGtbdA&id=17352109451&_u=765kgh64ed9
I really don’t whether you guys can open it and buy it…..

and the rod that worm gear needs is 4mm&6mm
(if you buy it maybe you need to buy too )
and you can get it too from the same place,and the links is: https://item.taobao.com/item.htm?spm=a1z09.2.0.0.NGtbdA&id=45114001387&_u=765kgh6babe

Print Settings

Printer:

DreamMaker

Rafts:

Doesn’t Matter

Supports:

No

Resolution:

0.2mm

Infill:

40%

Notes:

Important things:

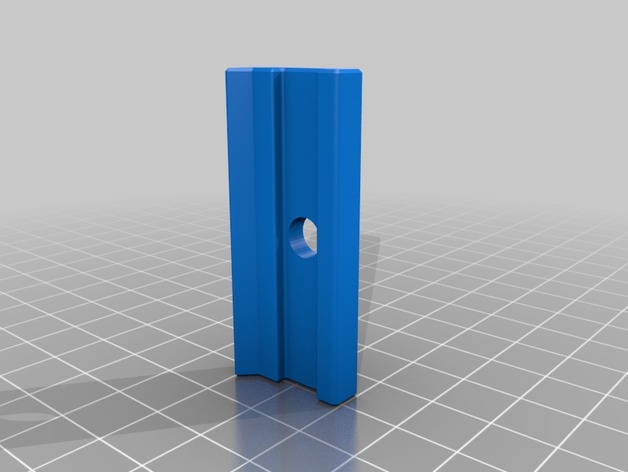

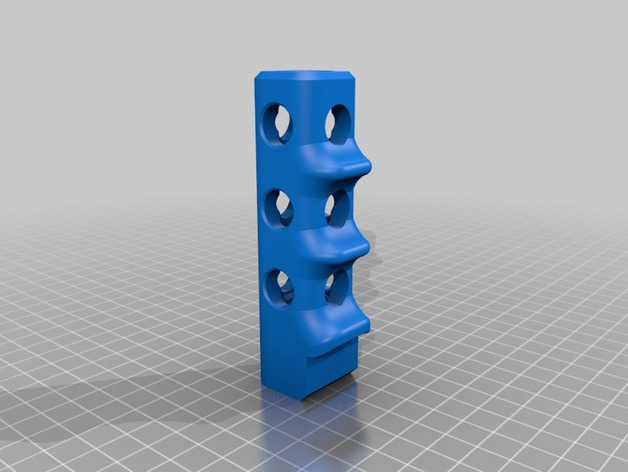

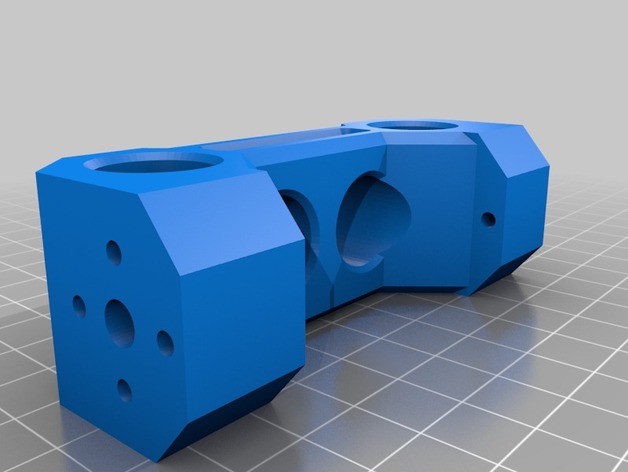

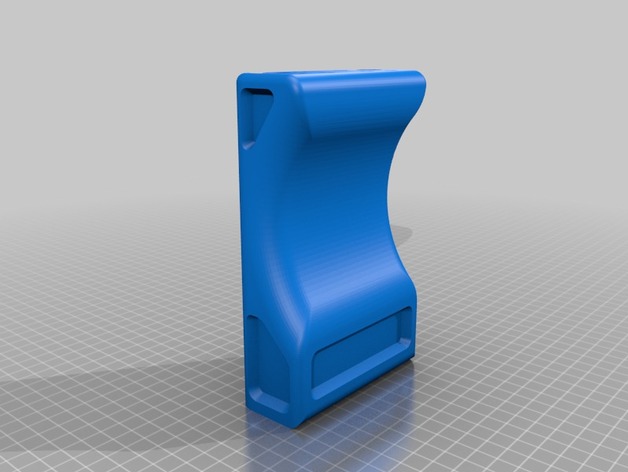

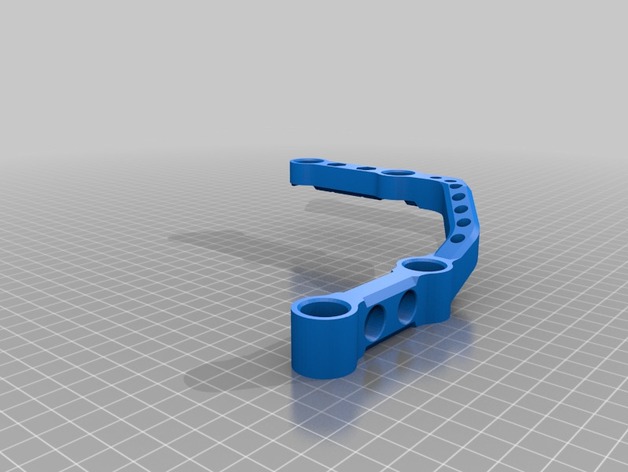

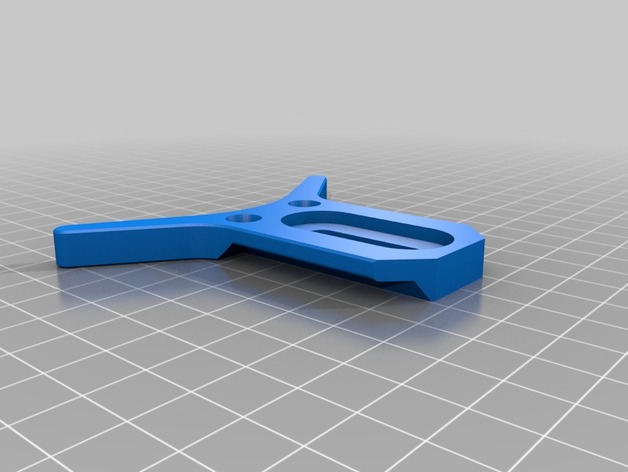

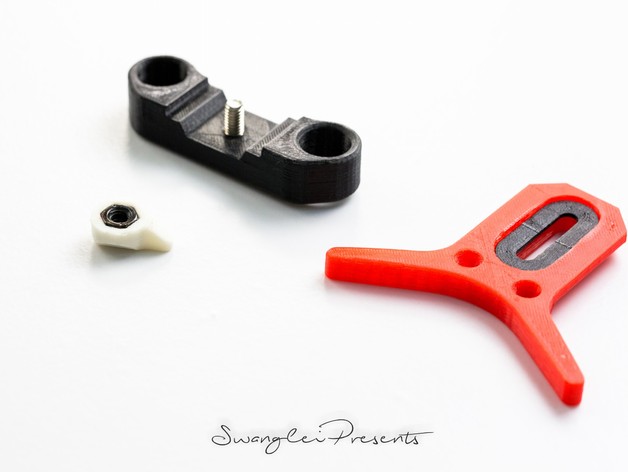

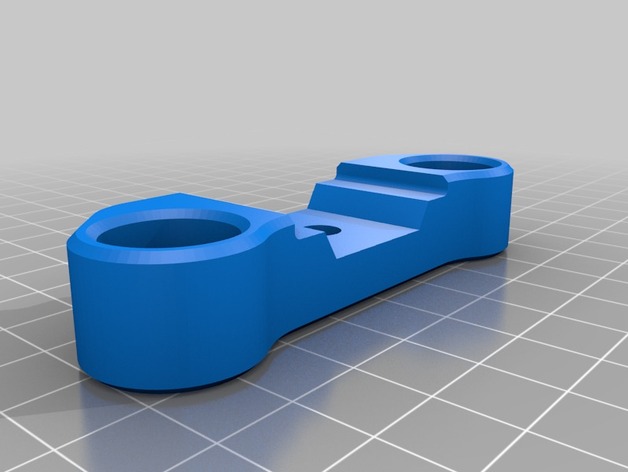

These parts should be printed twice:
Handle_rig_down.stl

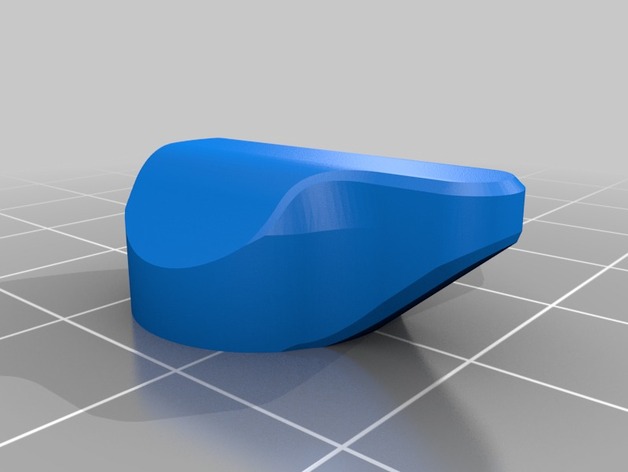

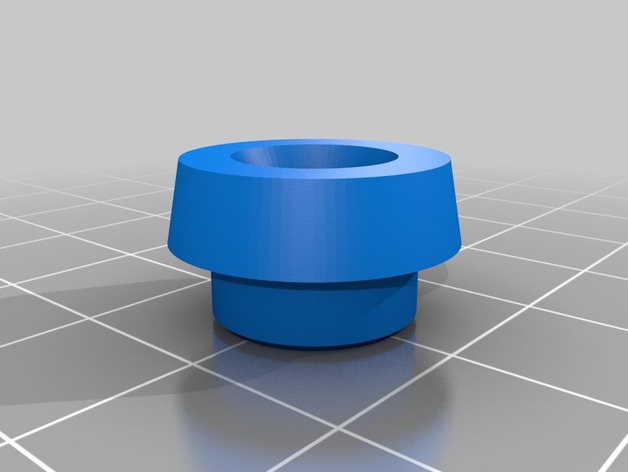

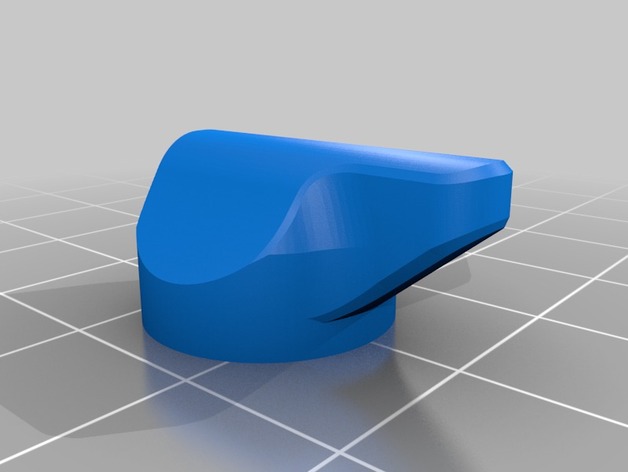

ScrewNorb.stl

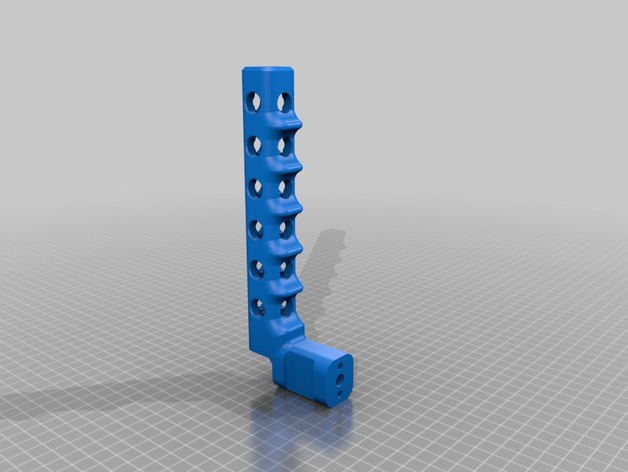

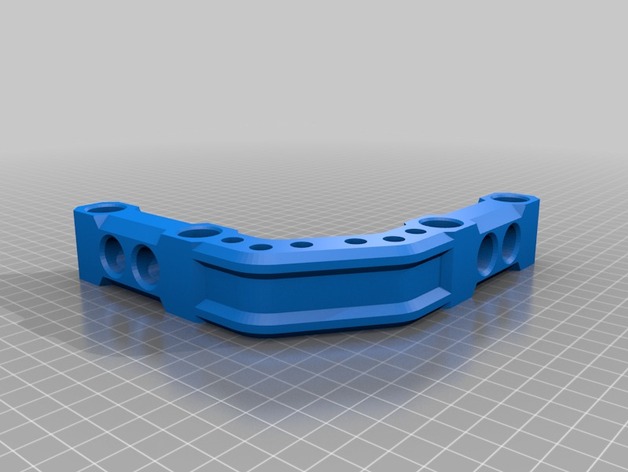

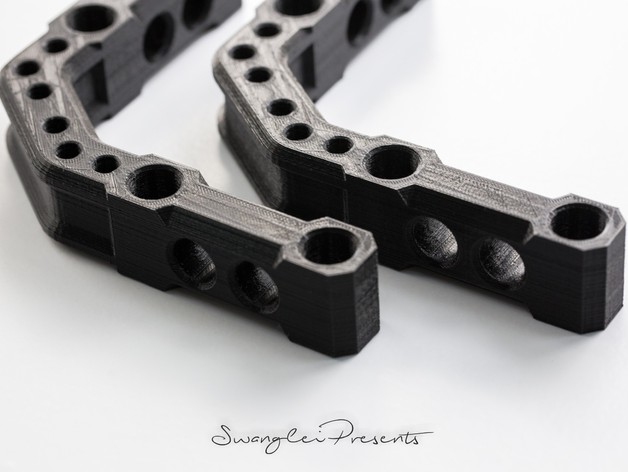

These should be printed twice but the second one is mirrored:

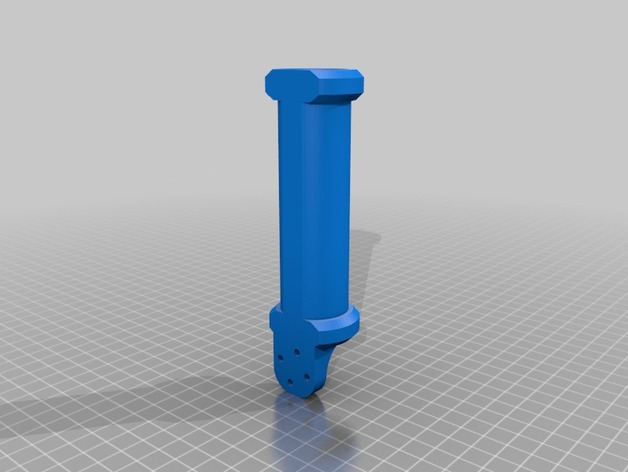

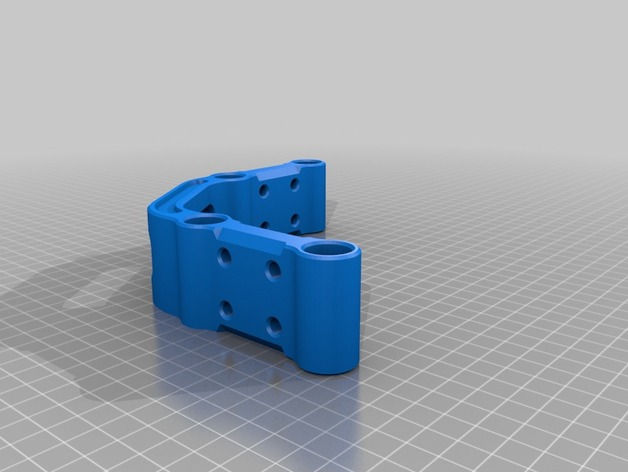

Handle.stl

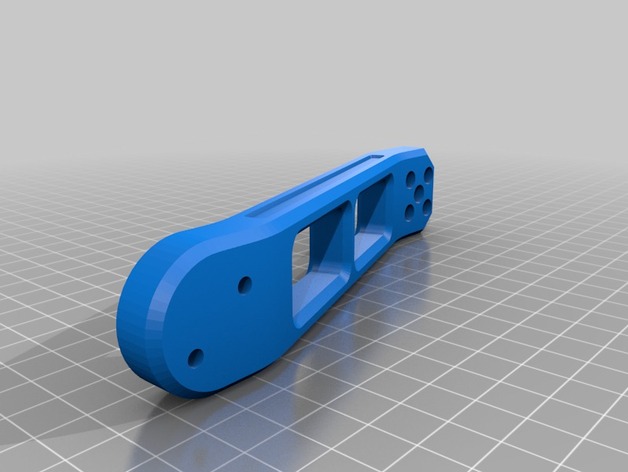

Handle_Beam.stl

most of the parts is printed for 20% infill and some parts that should be stronger I printed them for 40% infill.
How I Designed This

Screws that needs:
M3_8mm 4pics
M3_25mm 2pics
M4_16nn 4pics
M4_20mm 1pics
M6_50mm 1pics
M6_20mm 6pics
M6 nuts 3pics

30mm_37mm_4mm bearing 2pics
15mm carbon fiber tubes (total : 1M~2M)

Credits:

swanglei
